Dimensions & weights
Standard and regulation
| Design and manufacture | Face to face / End to end | Pressure-temperature rating | Inspection and test |
|---|---|---|---|
| API 600; ANSI B16.34; E101 | ANSI B16.10; E101 | ANSI B16.34; E101 | API 598; E101 |
Gate Valves / Product 2575
High temperature and high pressure power station gate valve Class1500~3500
FamilyGate Valves
Product ID2575
Sales supportSubmit RFQ

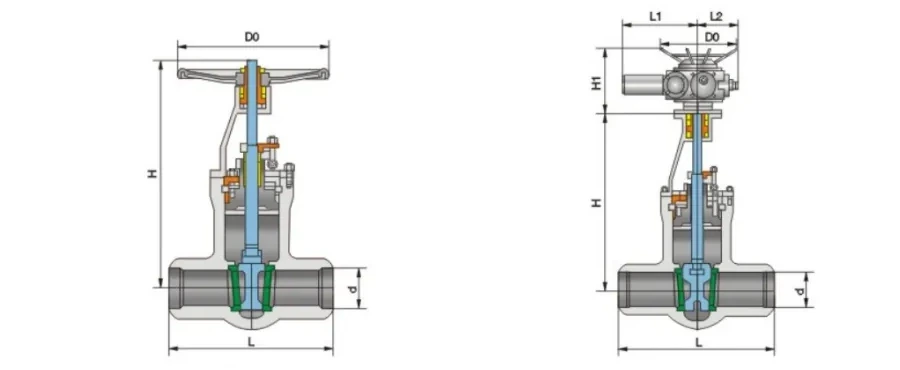

Structure & product views
Product structure and views.
Product parameters
Technical data tables.
Part materials
Performance regulation
| Body material | 1500 Class shell test | 1500 Class seal test | 2000 Class shell test | 2000 Class seal test | 2500 Class shell test | 2500 Class seal test | 3500 Class shell test | 3500 Class seal test | Working temperature (°C) | 1500 Class working pressure (MPa) | 2000 Class working pressure (MPa) | 2500 Class working pressure (MPa) | 3500 Class working pressure (MPa) | Suitable medium |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASTM A216 WCB | 39.0 | 28.6 | 52.1 | 38.2 | 65.1 | 47.7 | 91.1 | 66.8 | 38 / 427 | 26.0 / 14.5 | 34.7 / 19.3 | 43.4 / 24.1 | 60.7 / 33.7 | Water, steam |
| ASTM A217 WC1 | 36.6 | 26.8 | 48.8 | 35.8 | 61.1 | 44.8 | 85.5 | 62.7 | 38 / 454 | 24.4 / 17.1 | 32.5 / 22.8 | 40.7 / 28.5 | 57.0 / 40.0 | Water, steam |
| ASTM A217 WC6 | 39.6 | 29.0 | 52.8 | 38.7 | 65.9 | 48.3 | 92.3 | 67.7 | 38 / 552 | 26.4 / 6.3 | 35.2 / 8.45 | 43.9 / 10.6 | 61.5 / 14.4 | Water, steam |
| ASTM A217 WC9 | 39.6 | 29.0 | 52.8 | 38.7 | 65.9 | 48.3 | 92.3 | 67.7 | 38 / 593 | 26.4 / 4.0 | 35.2 / 5.3 | 43.9 / 6.6 | 61.5 / 9.3 | Water, steam |
Part materials
Main parts material
| Part name | Body | Cover | Yoke | Wedge disc | Stem | Seat ring | Sealing shim | Packing | Yoke nut |
|---|---|---|---|---|---|---|---|---|---|
| Material | WCB | 35 | WCB | WCB | 2Cr13 | 25 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
| Material | WC1 | 12Cr1MoV | WCB | WC1 | 25Cr2MoV | 304 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
| Material | WC6 | 12Cr1MoV | WCB | WC6 | 25Cr2MoV | 304 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
| Material | WC9 | 12Cr1MoV | WCB | WC9 | 25Cr2MoV | 304 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
| Material | ZGCr5Mo | 35Cr1Mo | WCB | ZGCr5Mo | 25Cr2MoV | 304 | Enhanced flexible graphite | Enhanced flexible graphite | ZCuAl10Fe3 |
Dimensions & weights
Main outline size and connection size
| Actuator code | Size (in) | Electric actuator code | d (mm) | L (mm) | H (mm) | H1 (mm) | D₀ (mm) | L1 (mm) | L2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| Z60Y-1500lb | 2-1/2 | -- | 56 | 254 | 671 | -- | 200 | -- | -- | 48 |
| Z60Y-1500lb | 3 | -- | 64 | 305 | 692 | -- | 200 | -- | -- | 58 |
| Z60Y-1500lb | 4 | -- | 84 | 406 | 790 | -- | 230 | -- | -- | 98 |
| Z60Y-1500lb | 5 | -- | 100 | 483 | 875 | -- | 260 | -- | -- | 126 |
| Z60Y-1500lb | 6 | -- | 126 | 559 | 1055 | -- | 360 | -- | -- | 212 |
| Z60Y-1500lb | 8 | -- | 158 | 711 | 1148 | -- | 410 | -- | -- | 377 |
| Z60Y-2000lb | 2-1/2 | -- | 52 | 330 | 640 | -- | 200 | -- | -- | 50 |
| Z60Y-2000lb | 3 | -- | 60 | 368 | 680 | -- | 230 | -- | -- | 82 |
| Z60Y-2000lb | 4 | -- | 80 | 457 | 806 | -- | 260 | -- | -- | 134 |
| Z60Y-2000lb | 5 | -- | 96 | 533 | 984 | -- | 360 | -- | -- | 174 |
| Z60Y-2000lb | 6 | -- | 118 | 610 | 1090 | -- | 410 | -- | -- | 338 |
| Z60Y-2500lb | 2-1/2 | -- | 46 | 330 | 639 | -- | 200 | -- | -- | 70 |
| Z60Y-2500lb | 3 | -- | 54 | 368 | 680 | -- | 230 | -- | -- | 90 |
| Z60Y-2500lb | 4 | -- | 70 | 457 | 805 | -- | 260 | -- | -- | 142 |
| Z60Y-2500lb | 5 | -- | 86 | 533 | 965 | -- | 360 | -- | -- | 191 |
| Z60Y-2500lb | 6 | -- | 104 | 610 | 1070 | -- | 410 | -- | -- | 339 |
| Z60Y-3500lb | 3 | -- | 44 | 440 | 745 | -- | 260 | -- | -- | 196 |
| Z60Y-3500lb | 4 | -- | 56 | 540 | 860 | -- | 300 | -- | -- | 283 |
| Z860Y-1500lb | 2-1/2 | SMC-04 | 56 | 254 | 520 | 262 | 200 | 140 | 243 | 93 |
| Z860Y-1500lb | 3 | SMC-04 | 64 | 305 | 523 | 262 | 200 | 140 | 243 | 110 |
| Z860Y-1500lb | 4 | SMC-03 | 84 | 406 | 599 | 319 | 508 | 198 | 281 | 168 |
| Z860Y-1500lb | 4 | SMC-00 | 84 | 406 | 599 | 320 | 305 | 400 | 555 | 208 |
| Z860Y-1500lb | 5 | SMC-03 | 100 | 483 | 678 | 319 | 305 | 400 | 555 | 189 |
| Z860Y-1500lb | 5 | SMC-00 | 100 | 483 | 678 | 320 | 305 | 400 | 555 | 232 |
| Z860Y-1500lb | 6 | SMC-0 | 126 | 559 | 793 | 389 | 305 | 410 | 565 | 358 |
| Z860Y-1500lb | 6 | SMC-1 | 126 | 559 | 793 | 402 | 305 | 420 | 665 | 444 |
| Z860Y-1500lb | 8 | SMC-0 | 158 | 711 | 813 | 389 | 305 | 410 | 565 | 517 |
| Z860Y-1500lb | 8 | SMC-1 | 158 | 711 | 813 | 414 | 305 | 420 | 665 | 561 |
| Z860Y-1500lb | 10 | SMC-2 | 200 | 864 | 998 | 490 | 457 | 440 | 688 | 852 |
| Z860Y-1500lb | 10 | SMC-1 | 200 | 864 | 998 | 464 | 305 | 420 | 655 | 823 |
| Z860Y-1500lb | 12 | SMC-1 | 250 | 991 | 1141 | 515 | 305 | 420 | 655 | 1122 |
| Z860Y-1500lb | 12 | SMC-2 | 250 | 991 | 1156 | 560 | 457 | 440 | 688 | 1150 |
| Z860Y-1500lb | 14 | SMC-3 | 280 | 1067 | 1248 | 656 | 610 | 690 | -- | 1765 |
| Z860Y-1500lb | 16 | SMC-3 | 318 | 1194 | 1351 | 697 | 610 | 690 | -- | 2429 |
| Z860Y-1500lb | 18 | SMC-3 | 360 | 1346 | 1535 | 710 | 610 | 690 | -- | 2454 |
| Z860Y-1500lb | 18 | SMC-4 | 360 | 1346 | 1540 | 760 | 610 | 715 | -- | 2524 |
| Z860Y-1500lb | 20 | SMC-3 | 406 | 1473 | 1726 | 820 | 610 | 690 | -- | 3334 |
| Z860Y-1500lb | 20 | SMC-4 | 406 | 1473 | 1731 | 890 | 610 | 715 | -- | 3380 |
| Z860Y-1500lb | 22 | SMC-3 | 450 | 1600 | 1921 | 854 | 610 | 690 | -- | 4409 |
| Z860Y-1500lb | 22 | SMC-4 | 450 | 1600 | 1926 | 945 | 610 | 715 | -- | 4648 |
| Z960Y-2000lb | 2-1/2 | SMC-04 | 50 | 330 | 540 | 262 | 200 | 140 | 243 | 202 |
| Z960Y-2000lb | 3 | SMC-03 | 60 | 368 | 558 | 294 | 508 | 198 | 332 | 140 |
| Z960Y-2000lb | 4 | SMC-00 | 80 | 457 | 654 | 320 | 305 | 400 | 555 | 245 |
| Z960Y-2000lb | 5 | SMC-00 | 96 | 533 | 780 | 340 | 305 | 400 | 555 | 280 |
| Z960Y-2000lb | 5 | SMC-0 | 96 | 533 | 780 | 389 | 305 | 410 | 565 | 323 |
| Z960Y-2000lb | 6 | SMC-0 | 118 | 610 | 830 | 389 | 305 | 410 | 565 | 419 |
| Z960Y-2000lb | 8 | SMC-1 | 148 | 762 | 960 | 418 | 305 | 420 | 655 | 626 |
