Gate Valves / Product 2533

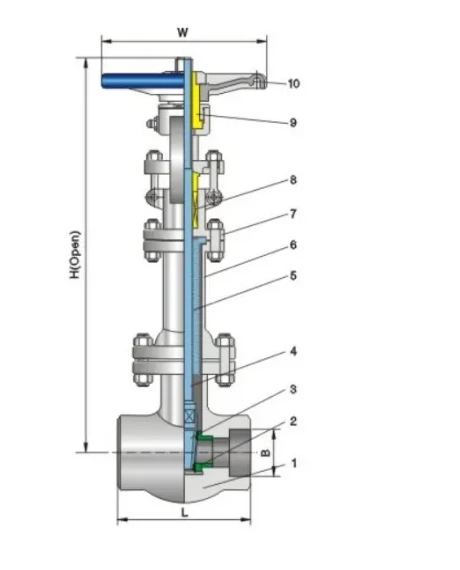

Structure & product views
Product parameters
Part materials
| No. | Part | Material |
|---|---|---|
| 1 | Body | A105 |
| 2 | Seat | 13Cr+STL |
| 3 | Wedge | 13Cr+STL |
| 4 | Stem | A182-F6a |
| 5 | Bellow | 304L |
| 6 | Bonnet | A105 |
| 7 | Yoke | A105 |
| 8 | Packing | Flexible graphite |
| 9 | Stem nut | Copper alloy |
| 10 | Handwheel | Malleable cast iron |
Dimensions & weights
| Size (in) | DN (mm) | L (mm) | B (mm) | H open (mm) | W (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 1/2 | 15 | 92 | 21.8 | 253 | 100 | 15 |
| 3/4 | 20 | 111 | 27.1 | 292 | 125 | 19 |
| 1 | 25 | 120 | 33.8 | 335 | 160 | 23 |
| 1-1/2 | 40 | 140 | 48.7 | 442 | 180 | 35 |
| 2 | 50 | 178 | 61.1 | 536 | 200 | 38 |
