Globe Valves / Product 2552

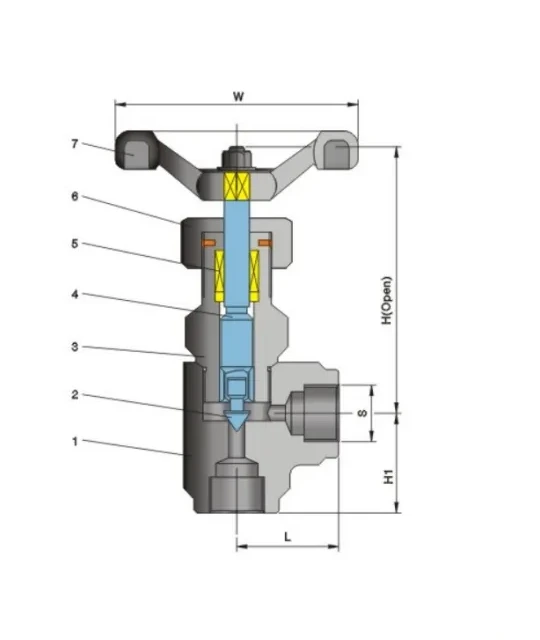

Structure & product views
Product parameters
Dimensions & weights
| NPS | DN (mm) | L (mm) | S/NPT | H₁ (mm) | H open (mm) | W (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1/4 | 6 | 30 | 6 | 30 | 82 | 65 | 0.65 |
| 3/8 | 10 | 30 | 10 | 32 | 82 | 65 | 0.59 |
| 1/2 | 15 | 30 | 15 | 35 | 82 | 65 | 0.54 |
| 3/4 | 20 | 40 | 20 | 40 | 94 | 80 | 1.2 |
| 1 | 25 | 40 | 25 | 45 | 94 | 80 | 1.1 |
Part materials
| No. | Part | Material |
|---|---|---|
| 1 | Body | A105 |
| 2 | Disc | 13Cr |
| 3 | Bonnet | A105 |
| 4 | Stem | A182-F6a |
| 5 | Packing | Flexible graphite |
| 6 | Impact nut | 13Cr |
| 7 | Handwheel | Malleable Iron |
