Three-piece forged steel ball valve Class 800/1500

FamilyBall valve
Product ID2523

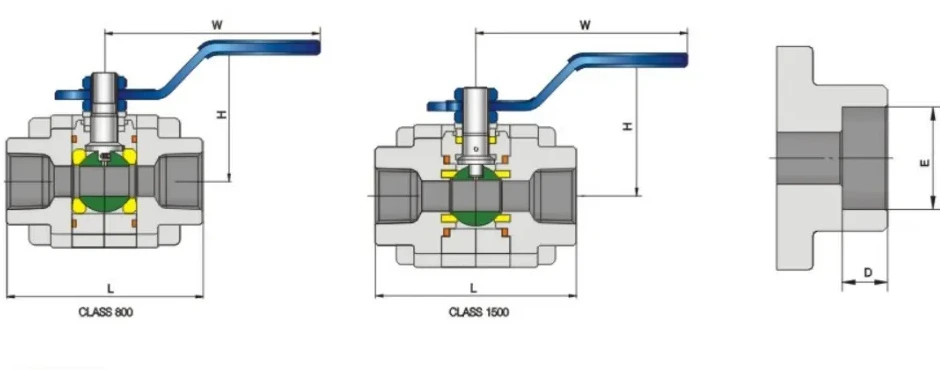

Structure & product views

Structure and product views for Three piece forged steel ball valve Class800/1500

Technical data tables.

Dimensions & weights

Class 800/1500 · Full bore

ClassSize (in)End-to-end L (mm)Lever width W (mm)Center of top H (mm)Inside bore D (mm)Weight (kg)
8001/46712050110.75
8003/86712050110.75
8001/27312052140.95
8003/4881456020.51.7
800110514565252.4
8001-1/41161758631.63.7
8001-1/212817593384.9
8002146260110498.7
15001/4731205211--
15003/87312052111.2
15001/28814560142.2
15003/41051456020.53.4
1500111617586254.7
15001-1/41281759331.66.7
15001-1/21462601103810.5
15002----------

Dimensions & weights

Class 800/1500 · Reduced bore

ClassSize (in)End-to-end L (mm)Lever width W (mm)Center of top H (mm)Inside bore D (mm)Weight (kg)
8001/26712050110.75
8003/47312052140.95
8001881456020.51.7
8001-1/410514565252.4
8001-1/21161758631.63.7
800212817593384.9
15001/27312052111.2
15003/48814560142.2
150011051456020.53.4
15001-1/411617586254.7
15001-1/21281759331.66.7
150021462601103810.5

Dimensions & weights

Socket-weld dimensions

Size (in)E (mm)D (mm)
1/414.19.6
3/817.69.6
1/221.99.6
3/427.412.7
134.212.7
1-1/442.712.7
1-1/248.812.7
261.115.9

Part materials

Major part materials

No.PartA105LF2F304F316F51
1BonnetA105LF2F304F316F51
2SeatRPTFE & PEEKRPTFE & PEEKRPTFE & PEEKRPTFE & PEEKRPTFE & PEEK
3BallF6F304F304(L)F316(L)F51
4BodyA105LF2F304(L)F316(L)F51
5O-ringVITONVITONVITONVITONVITON
6StudPTFEB8B8B8MB8M
7GasketPTFEPTFEPTFEPTFEPTFE
8Packing bushing410PTFEPTFEPTFEPTFE
9Gland410304304(L)316(L)F51
10StemAl304304(L)316(L)F51
11Nameplate1045+ZnAlAlAlAl
12Lever2H1045+Zn1045+Zn1045+Zn1045+Zn
13NutAl8M8M8M8M
14Elastic washer65Mn65Mn304304304
15Anti-static spring304304304316L316L

Catalogue configuration

What distinguishes this product?

Three-piece forged steel ball valve Class 800/1500. Match the pressure-class row as well as the NPS when reading the full- and reduced-bore tables: Class 800 and Class 1500 dimensions differ. Use the separate socket-weld table for the connection reference. Blank catalogue cells require confirmation; submit the class, bore, connection and operating conditions with your RFQ.
