Forged steel flange gate valve Class150/300/600

Name: Forged steel flange gate valve Class150/300/600
Brand: ZGV
SKU: 2529

FamilyGate Valves

Product ID2529

Sales supportSubmit RFQ

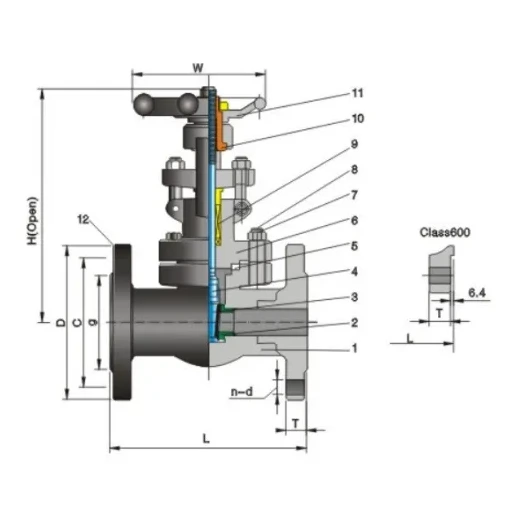

Dimensions & weights

Size (in)	DN (mm)	Class	L (mm)	D (mm)	C (mm)	g (mm)	T (mm)	n-d	H reduced (mm)	H full (mm)	W reduced (mm)	W full (mm)	Weight reduced (kg)	Weight full (kg)
1/2	15	150	108	90	60.3	35	11.5	4-16	166	169	100	100	4.5	5
1/2	15	300	140	95	66.5	35	14.5	4-16	166	169	100	100	4.8	5.2
1/2	15	600	165	95	66.5	35	14.5	4-16	166	169	100	100	5.9	5.9
3/4	20	150	117	100	70	43	13	4-16	169	193	100	125	5.2	6.1
3/4	20	300	152	115	82.5	43	16	4-19	169	193	100	125	6.2	6.3
3/4	20	600	190	115	82.5	43	16	4-19	169	193	100	125	7.4	7.5
1	25	150	127	110	79.5	51	14.5	4-16	193	230	125	160	8.2	8.4
1	25	300	165	125	89	51	18	4-19	193	230	125	160	9.3	8.6
1	25	600	216	125	89	51	18	4-19	193	230	125	160	10.4	10.2
1-1/4	32	150	140	115	89	63	16	4-16	230	246	160	160	11.5	14.3
1-1/4	32	300	178	135	98.5	63	19.5	4-19	230	246	160	160	14	14.5
1-1/4	32	600	229	135	98.5	63	21	4-19	230	246	160	160	16.2	16.7
1-1/2	40	150	165	125	98.5	73	18	4-16	246	283	160	180	12.5	15.4
1-1/2	40	300	190	155	114.5	73	21	4-22.5	246	283	160	180	15.5	15.6
1-1/2	40	600	241	155	114.5	73	22.5	4-22.5	246	283	160	180	17.5	17.4
2	50	150	178	150	120.5	92	19.5	4-19	283	330	180	200	20.3	22.7
2	50	300	216	165	127	92	22.5	8-19	283	330	180	200	23.4	22.8
2	50	600	292	165	127	92	26	8-19	283	330	180	200	28.3	28.7

Part materials

No.	Part	Material
1	Body	A105
2	Seat	13Cr
3	Wedge	13Cr
4	Stem	A182-F6a
5	Gasket	Stainless steel+flexible graphite
6	Bonnet	A105
7	Nut	A194-2H
8	Bolt	A193-B7
9	Packing	Flexible graphite
10	Stem nut	13Cr
11	Handwheel	Malleable iron
