Forged-steel gate valve · Class 900/1500/2500

FamilyGate valve
Product ID2531

Structure & product views

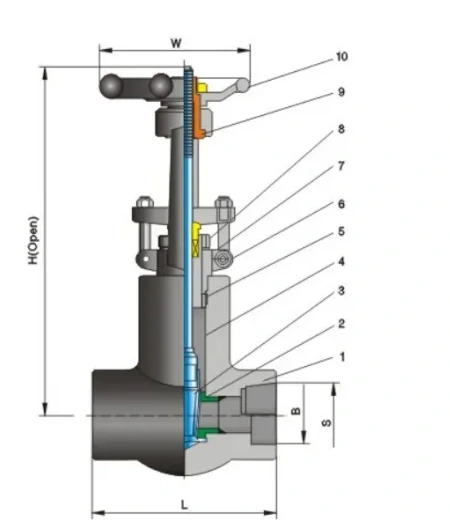

Structure and product views for Forged steel gate valve Class900/1500/2500

Technical data tables.

Dimensions & weights

Class 900/1500/2500 · Main dimensions and weights

Size (in)DN (mm)L Class 900/1500 (mm)L Class 2500 (mm)B ANSI (mm)B JIS (mm)S thread sizeH open (mm)W (mm)Weight (kg)
1/21514018621.822.21/232112512.3
3/42014018627.127.73/432112511.6
12514018633.834.5132116010.8
1-1/43217823242.643.21-1/438016026
1-1/24017823248.749.11-1/241418028.4
25021627961.161.1250220060

Part materials

Major part materials

No.PartMaterial
1BodyA105
2Seat13Cr
3Wedge13Cr
4StemA182-F6a
5Sealing ring304
6YokeA105
7BonnetA105
8PackingFlexible graphite
9Stem nut13Cr
10HandwheelMalleable iron
