Dimensions & weights

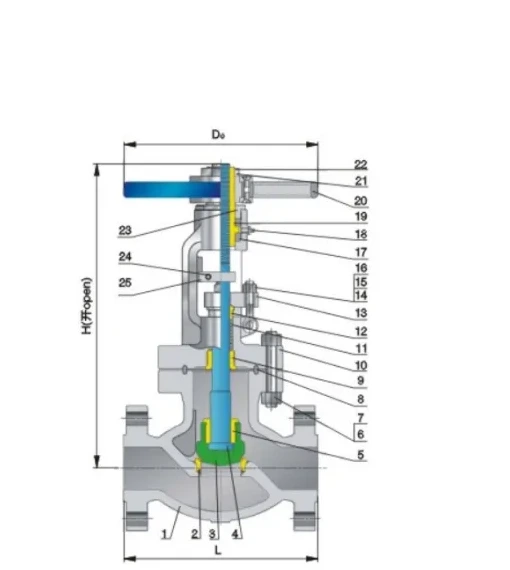

Class 900/1500/2500 · Dimensions and weights
| Class | NPS | DN (mm) | L-L₁ RF/BW (in) | L-L₁ RF/BW (mm) | L₂ RTJ (in) | L₂ RTJ (mm) | H open (in) | H open (mm) | D₀ (in) | D₀ (mm) | Weight RF (kg) | Weight BW (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class900 | 2 | 50 | 14.5 | 368 | 14.62 | 371 | 9.44 | 240 | 13.75 | 350 | 100 | 75 |
| Class900 | 2-1/2 | 65 | 16.5 | 419 | 16.62 | 422 | 10.25 | 260 | 15.75 | 400 | 118 | 94 |
| Class900 | 3 | 80 | 15 | 381 | 15.12 | 384 | 10.25 | 260 | 17.75 | 450 | 131 | 105 |
| Class900 | 4 | 100 | 18 | 457 | 18.12 | 460 | 12.63 | 320 | 22.06 | 560 | 218 | 185 |
| Class900 | 6 | 150 | 24 | 610 | 24.12 | 613 | 15 | 382 | 24 | 610 | 452 | 340 |
| Class900 | 8 | 200 | 29 | 737 | 29.12 | 740 | 20.88 | 530 | 24 | 610 | 710 | 630 |
| Class900 | 10 | 250 | 33 | 838 | 33.12 | 841 | 27.17 | 690 | 24 | 610 | 2050 | 1870 |
| Class1500 | 2 | 50 | 14.5 | 368 | 14.62 | 371 | 23.31 | 592 | 13.75 | 350 | 112 | 84 |
| Class1500 | 2-1/2 | 65 | 16.5 | 419 | 16.62 | 422 | 26 | 660 | 15.75 | 400 | 141 | 115 |
| Class1500 | 3 | 80 | 18.5 | 470 | 18.62 | 473 | 27.25 | 692 | 17.75 | 450 | 228 | 183 |
| Class1500 | 4 | 100 | 21.5 | 546 | 21.62 | 549 | 35.69 | 907 | 22.06 | 560 | 336 | 277 |
| Class1500 | 6 | 150 | 27.75 | 705 | 28 | 711 | 40 | 1015 | 24 | 610 | 822 | 715 |
| Class1500 | 8 | 200 | 32.75 | 832 | 33.13 | 842 | 45.06 | 1145 | 24 | 610 | 990 | 830 |
| Class1500 | 10 | 250 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| Class2500 | 2 | 50 | 17.75 | 451 | 17.87 | 454 | 27.25 | 692 | 15.75 | 400 | 182 | 153 |
| Class2500 | 2-1/2 | 65 | 20 | 508 | 20.25 | 514 | 29.5 | 750 | 19.69 | 500 | 290 | 230 |
| Class2500 | 3 | 80 | 22.75 | 578 | 23 | 584 | 31.5 | 800 | 24 | 610 | 340 | 272 |
| Class2500 | 4 | 100 | 26.5 | 673 | 26.88 | 683 | 47.25 | 1200 | 30 | 760 | 820 | 670 |
| Class2500 | 6 | 150 | 36 | 914 | 36.5 | 927 | 75 | 1905 | 30 | 750 | 2300 | 2000 |
| Class2500 | 8 | 200 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
| Class2500 | 10 | 250 | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- |
