Globe Valves / Product 2546

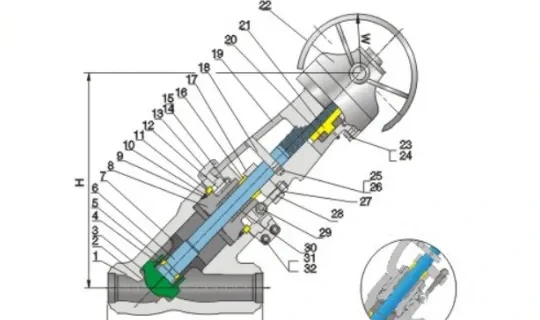

Pressure self sealing Y-shaped globe valve Class900/1500/2500

Name: Pressure self sealing Y-shaped globe valve Class900/1500/2500
Brand: ZGV
SKU: 2546

FamilyGlobe Valves

Product ID2546

Sales supportSubmit RFQ

Dimensions & weights

Class	NPS	DN (mm)	BW L (in)	BW L (mm)	H open (in)	H open (mm)	W (in)	W (mm)	Weight (kg)
Class900	2	50	13.3	338	15	380	12.2	310	78
Class900	2-1/2	65	15.4	391	16.5	420	12.2	310	84
Class900	3	80	17	432	18.11	460	18.11	460	92
Class900	4	100	18.5	470	23.23	590	18.11	460	131
Class900	6	150	20	508	32.28	820	18.11	460	258
Class900	8	200	26	660	41.34	1050	24	610	553
Class900	10	250	31	787	50	1270	24	610	992
Class900	12	300	38	965	58.27	1480	24	610	1603
Class900	14	350	38	965	61.02	1550	24	610	1825
Class900	16	400	44.5	1130	70.08	1780	24	610	2579
Class1500	2	50	13.3	338	15	380	12.2	310	83
Class1500	2-1/2	65	15.4	391	16.5	420	12.2	310	95
Class1500	3	80	17	432	15.16	385	18.11	460	115
Class1500	4	100	18.5	470	15.16	385	18.11	460	148
Class1500	6	150	27.75	705	18.5	470	18.11	460	382
Class1500	8	200	30	762	26.06	662	24	610	759
Class1500	10	250	36.25	921	34.76	883	24	610	1320
Class1500	12	300	43	1092	50.28	1480	24	610	2062
Class1500	14	350	--	--	--	--	--	--	--
Class1500	16	400	--	--	--	--	--	--	--
Class2500	2	50	13.3	338	15	380	12.2	310	93
Class2500	2-1/2	65	15.4	391	16.5	420	18.11	460	108
Class2500	3	80	17	432	15.16	385	18.11	460	122
Class2500	4	100	18.5	470	16.54	420	18.11	460	163
Class2500	6	150	27.75	705	26.89	683	24	610	461
Class2500	8	200	30	762	28.35	720	24	610	790
Class2500	10	250	36.25	921	35.12	892	24	610	1330
Class2500	12	300	--	--	--	--	--	--	--
Class2500	14	350	--	--	--	--	--	--	--
Class2500	16	400	--	--	--	--	--	--	--
