Forged steel flange globe valve Class150/300/600

Name: Forged steel flange globe valve Class150/300/600
Brand: ZGV
SKU: 2547

FamilyGlobe Valves

Product ID2547

Sales supportSubmit RFQ

Dimensions & weights

Size (in)	DN (mm)	Class	L (mm)	D (mm)	C (mm)	g (mm)	T (mm)	n-d	H reduced (mm)	H full (mm)	W reduced (mm)	W full (mm)	Weight reduced (kg)	Weight full (kg)
1/2	15	150	108	90	60.5	35	11.5	4-16	158	163	100	100	4.5	6.9
1/2	15	300	162	95	66.5	35	14.5	4-16	158	163	100	100	4.8	7.7
1/2	15	600	165	95	66.5	35	14.5	4-16	158	163	100	100	5.6	7.8
3/4	20	150	117	100	70	43	13	4-16	163	193	100	125	6.9	9.8
3/4	20	300	178	115	82.5	43	16	4-19	163	193	100	125	7.7	11.3
3/4	20	600	190	115	82.5	43	16	4-19	163	193	100	125	7.8	12.5
1	25	150	127	110	79.5	51	14.5	4-16	193	250	125	160	9.8	13.5
1	25	300	203	125	89	51	18	4-19	193	250	125	160	11	16.8
1	25	600	216	125	89	51	18	4-19	193	250	125	160	12.5	17.5
1-1/4	32	150	140	115	89	63	16	4-16	250	250	160	160	13.5	19.5
1-1/4	32	300	216	135	98.5	63	19.5	4-19	250	250	160	160	16.8	21.2
1-1/4	32	600	229	135	98.5	63	21	4-19	250	250	160	160	17	23.5
1-1/2	40	150	165	125	98.5	73	18	4-16	250	291	160	180	19.5	28.5
1-1/2	40	300	229	155	114.5	73	21	4-22.5	250	291	160	180	21.2	32.6
1-1/2	40	600	241	155	114.5	73	22.5	4-22.5	250	291	160	180	23.5	38.5
2	50	150	203	150	120.5	92	19.5	4-19	291	312	180	200	28	30.3
2	50	300	267	165	127	92	22.5	8-19	291	312	180	200	32.6	35
2	50	600	292	165	127	92	26	8-19	291	312	180	200	38.8	42.2

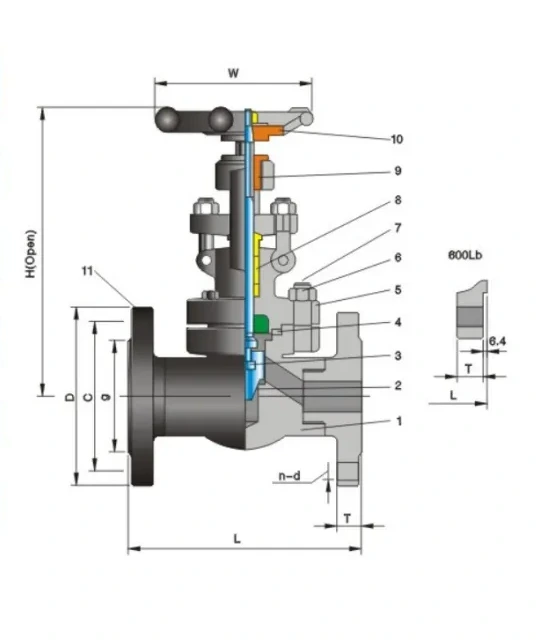

Part materials

No.	Part	Material
1	Body	A105
2	Disc	13Cr
3	Stem	A182-F6a
4	Gasket	Stainless steel+flexible graphite
5	Bonnet	A105
6	Nut	A194-2H
7	Bolt	A193-B7
8	Packing	Flexible graphite
9	Stem nut	13Cr
10	Handwheel	Malleable iron
11	Flange	A105
