Ball Valves / Product 2521

Full welded ball valve Class600

Name: Full welded ball valve Class600
Brand: ZGV
SKU: 2521

FamilyBall Valves

Product ID2521

Sales supportSubmit RFQ

Dimensions & weights

Size (in)	DN	L (WE) (mm)	L (RF) (mm)	L (RTJ) (mm)	E (mm)	F (mm)	G (mm)	n-d1	H1 (mm)	H2 (mm)	Weight (kg)
6	150	559	559	562	130	165	210	4-M20	247	210	250
8	200	660	660	663	200	254	300	8-M16	293	280	340
10	250	787	787	790	200	254	300	8-M16	334	320	580
12	300	838	838	841	200	254	300	8-M16	382	365	850
14	350	889	889	892	200	254	300	8-M16	416	400	1150
16	400	991	991	994	200	254	300	8-M16	469	475	1360
18	450	1092	1092	1095	230	298	350	8-M20	508	530	2120
20	500	1194	1194	1200	260	356	415	8-M30	571	585	2650
22	550	1295	1295	1305	260	356	415	8-M30	620	600	3200
24	600	1397	1397	1407	260	356	415	8-M30	651	660	3750
26	650	1448	1448	1461	260	356	415	8-M30	704	720	3900
28	700	1549	1549	1562	300	406	475	8-M36	760	760	4200
30	750	1651	1651	1664	300	406	475	8-M36	790	820	6000
32	800	1778	1778	1794	300	406	475	8-M36	835	860	6800
34	850	1930	1930	1946	--	--	--	--	--	--	--
36	900	2083	2083	2099	370	483	560	12-M36	970	1020	10000
38	950	--	--	--	--	--	--	--	--	--	--
40	1000	1956	1956	--	370	483	560	12-M36	1150	1230	14000
42	1050	2083	2083	--	370	483	560	12-M36	1260	1320	--
48	1200	2170	2170	--	370	483	560	12-M36	1430	1470	--
56	1400	2743	2743	--	470	603	686	20-M36	1620	1640	--
60	1500	2820	2820	--	470	603	686	20-M36	1800	1830	--

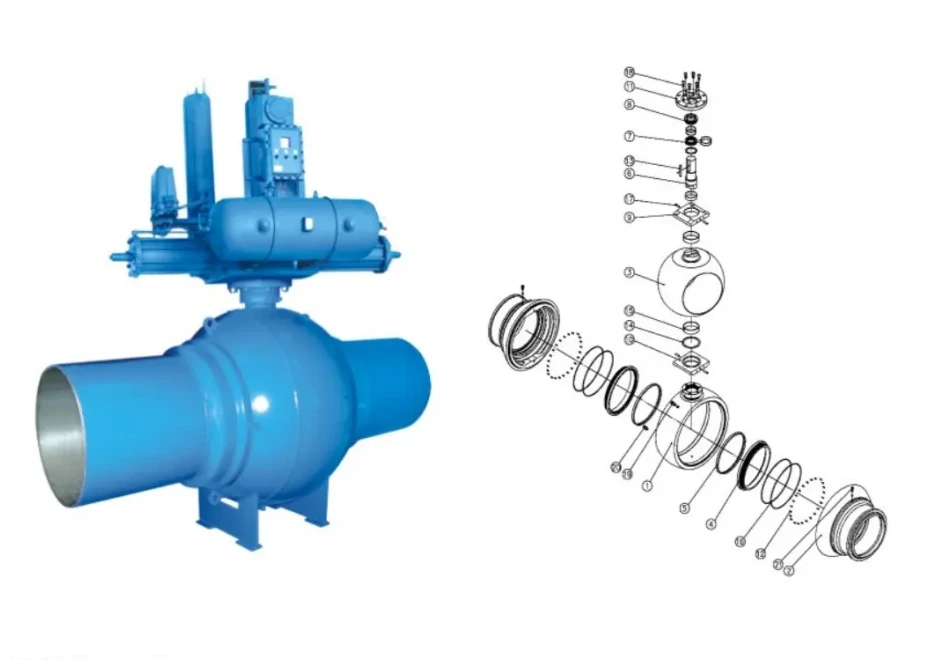

Part materials

No.	Part	Material 1	Material 2	Material 3
1	Body	ASTM A105	ASTM A350 LF2	ASTM A182 F316
2	Bonnet	ASTM A105	ASTM A350 LF2	ASTM A182 F316
3	Ball	ASTM A105+ENP	ASTM A350 LF2+ENP	ASTM A182 F316
4	Seat	ASTM A105+ENP	ASTM A350 LF2+ENP	ASTM A182 F316
5	Seal ring	PTFE/MOLON/PEEK	PTFE/MOLON/PEEK	PTFE/MOLON/PEEK
6	Stem	ASTM A182 F6a	ASTM A350 LF2	ASTM A182 F316
7	Stuffing box	ASTM A182 F6a	ASTM A276 410	ASTM A182 F316
8	Packing gland	ASTM A105	ASTM A350 LF2	ASTM A182 F316
9	Up bracing plate	ASTM A105	ASTM A350 LF2	ASTM A182 F316
10	Down bracing plate	ASTM A105	ASTM A350 LF2	ASTM A182 F316
11	Adapter	ASTM A105	ASTM A350 LF2	ASTM A182 F316
12	Spring	Inconel X-750	Inconel X-750	Inconel X-750
13	Key	45	45	45
14	Gasket	Stainless steel + PTFE	Stainless steel + PTFE	Stainless steel + PTFE
15	Bushing	Carbon steel + PTFE	Carbon steel + PTFE	Carbon steel + PTFE
16	O-ring	Fluorine rubber	Fluorine rubber	Fluorine rubber
17	Pin	35	ASTM A276 410	ASTM A182 F316
18	Nut	ASTM A193 B7M	ASTM A320 L7M	ASTM A193 B8
19	Relief valve	Carbon steel (assembly components)	Stainless steel (assembly components)	Stainless steel (assembly components)
20	Drain valve	Carbon steel (assembly components)	Stainless steel (assembly components)	Stainless steel (assembly components)
21	Fitting injection valve	Carbon steel (assembly components)	Stainless steel (assembly components)	Stainless steel (assembly components)
