Pressure self sealing gate valve Class900/1500/2500

Name: Pressure self sealing gate valve Class900/1500/2500
Brand: ZGV
SKU: 2528

FamilyGate Valves

Product ID2528

Sales supportSubmit RFQ

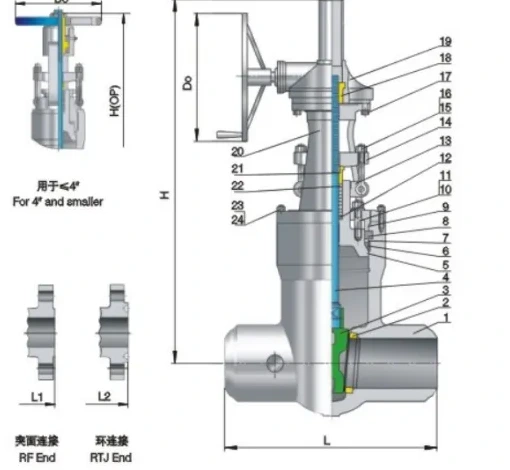

Dimensions & weights

Size (in)	L-L1 RF (mm)	L-L1 BW (mm)	L2 RTJ (mm)	H open (mm)	D₀ (mm)	Weight RF (kg)	Weight BW (kg)
2	368	216	371	554	300	48	37
2-1/2	419	254	422	637	350	82	62
3	381	305	384	680	350	90	80
4	457	356	460	796	400	152	118
6	610	508	613	1084	560	339	264
8	737	660	740	1372	460	620	522
10	838	787	841	1494	610	948	758
12	985	914	968	1550	610	1288	1088
14	1029	991	1039	1960	610	1718	1448
16	1130	1092	1140	2210	760	2378	2016

Dimensions & weights

Size (in)	L-L1 RF (mm)	L-L1 BW (mm)	L2 RTJ (mm)	H open (mm)	D₀ (mm)	Weight RF (kg)	Weight BW (kg)
2	368	216	371	554	300	58	44
2-1/2	419	254	422	637	450	89	69
3	470	305	473	767	450	126	83
4	546	406	549	875	560	180	128
6	705	559	711	1094	305	392	290
8	832	711	842	1372	460	793	585
10	991	864	1001	1655	610	1368	972
12	1130	991	1146	1834	610	2118	1813
14	1257	1067	1276	2150	760	2798	2008
16	1384	1194	1407	2260	760	3888	2813

Dimensions & weights

Size (in)	L-L1 RF (mm)	L-L1 BW (mm)	L2 RTJ (mm)	H open (mm)	D₀ (mm)	Weight RF (kg)	Weight BW (kg)
2	451	279	454	610	500	119	86
2-1/2	508	330	514	654	500	173	133
3	578	368	584	753	600	198	142
4	673	457	683	850	600	227	156
6	914	610	927	1254	460	718	498
8	1022	762	1038	1374	460	1293	890
10	1270	914	1292	1685	610	2248	1548
12	1422	1041	1445	1873	610	3091	2330
14	--	--	--	--	--	--	--
16	--	--	--	--	--	--	--
