Forged-steel globe valve · Class 900/1500/2500

FamilyGlobe valve
Product ID2549

Structure & product views

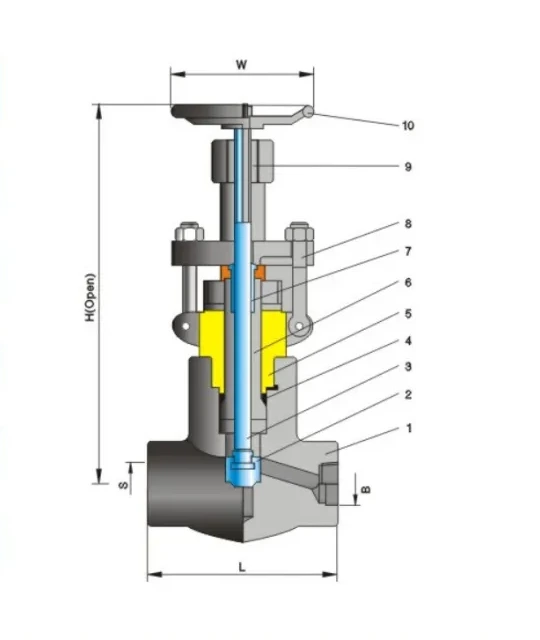

Structure and product views for Forged steel globe valve Class900/1500/2500

Technical data tables.

Dimensions & weights

Class 900/1500/2500 · Main dimensions and weights

NPSDN (mm)L Class 900/1500 (mm)L Class 2500 (mm)B ANSI (mm)B JIS (mm)S thread sizeH open (mm)W (mm)Weight Class 900/1500 (kg)Weight Class 2500 (kg)
1/21514018621.822.21/233312510.110.8
3/42014018627.127.73/433312510.811.6
12514018633.834.5133316011.212.3
1-1/43217823242.643.21-1/440816021.028.0
1-1/24017823248.749.11-1/240818019.626.4
25021627961.161.1252420040.443.8

Part materials

Major part materials

No.PartMaterial
1BodyA105
2Disc13Cr
3StemA182-F6a
4Sealing ring304
5YokeA105
6BonnetA105
7PackingFlexible graphite
8BoltA193-B7
9Stem nut13Cr
10HandwheelMalleable iron
