Bellows-sealed globe valve Class 800

FamilyGlobe valve
Product ID2551

Structure & product views

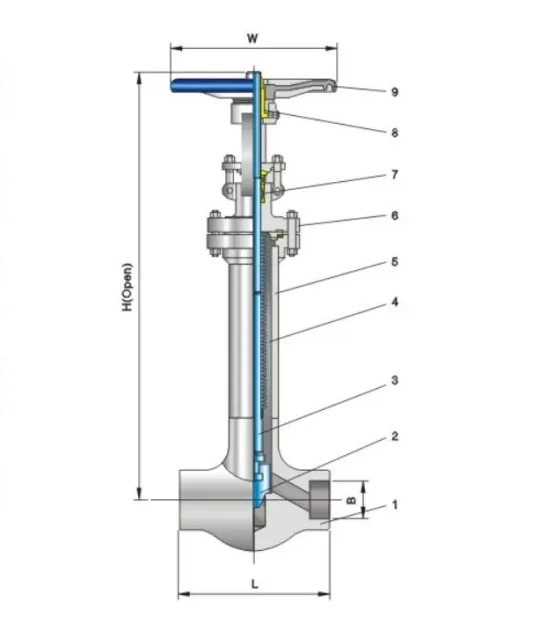

Structure and product views for Bellows globe valve Class800

Technical data tables.

Dimensions & weights

Class 800 · Main dimensions and weights

Size (in)DN (mm)L (mm)B (mm)H open (mm)W (mm)Weight (kg)
1/2159221.84201008
3/42011127.144512511
12512033.848616014
1-1/24017248.759018016
25020061.161520016

Part materials

Major part materials

No.PartMaterial
1BodyA105+STL
2Disc13Cr+STL
3StemA182-F6a
4Bellows304L
5BonnetA105
6YokeA105
7PackingFlexible graphite
8Stem nutCopper alloy
9HandwheelMalleable iron

Catalogue configuration

What distinguishes this product?

Bellows-sealed globe valve Class 800. Use the Class 800 bellows-sealed globe valve tables to check the 304L bellows and A105+STL body shown in the catalogue. Confirm the required NPS, end connection, medium, temperature and quantity with your RFQ.
