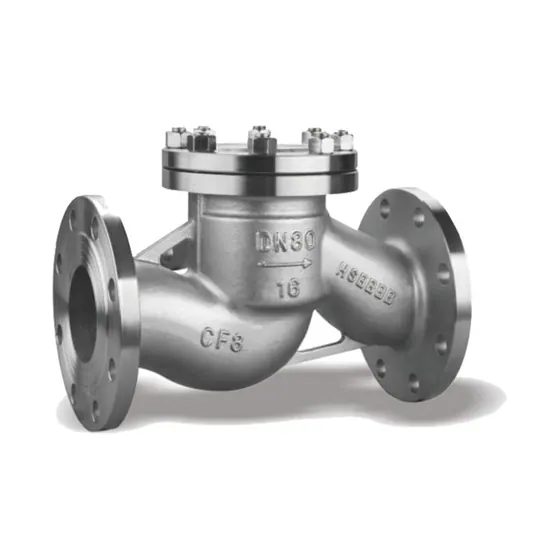

A replacement can have the correct nominal size and pressure class while failing to fit the installed pipework. The missing detail may be the dimensional pattern, end connection, measurement datum or operator envelope.
Use the applicable ASME B16.10 dimensions together with the actual valve type, size, rating, ends and approved drawing. Confirm the field interface and service envelope before calling a replacement interchangeable.
What the dimensional standard is intended to do
ASME B16.10 addresses face-to-face and end-to-end dimensions for straightway valves and corresponding centre dimensions for angle valves. Its interchangeability purpose is bounded by the relevant material, type, size, rating class and end connection. It does not make all valves of the same nominal size interchangeable. ASME B16.10 official scope
Use the ordered edition and the applicable dimensional entry or pattern. Where another standard such as EN 558 applies, identify its series and actual dimension rather than assuming that the use of millimetres harmonises the designs.
The standard length is one part of the interface. Flange standard, bore, facing, bolting, piping loads and operating clearance require their own confirmation.
Record the existing installation before selecting a replacement
Collect the old valve identity and drawing if available, then obtain reliable field information under the plant's approved survey arrangements. Record the relevant measurement planes and units, connection type, flange details and installed orientation. Include photographs showing the identification and adjacent equipment.
An in-place measurement can be affected by gasket thickness, pipe alignment and how the reference planes were chosen. Label it as measured information with its uncertainty; do not silently substitute it for an approved manufacturing dimension.
| Survey item | What to retain |
|---|---|
| Existing valve | Tag, model, type and relevant nameplate information |
| Connection length | Dimension, datum, units and measurement basis |
| Mating ends | Standard, class/PN, facing, bore and bolt arrangement |
| Adjacent restrictions | Reducers, liners, insulation, branches and equipment nozzles |
| Operator | Sweep, height, access and removal envelope |
| Support | Existing load path and any proposed change requiring review |
Name the pattern explicitly
Some valve families and standards provide alternative lengths. The purchase description should identify the applicable pattern or series and the required approved dimension. Avoid inferring a single universal “short” or “long” length from a size alone.
The useful comparison is between two identifiable drawings. If a supplier offers another pattern, record it as a deviation with the resulting piping impact. Do not wait for delivery to discover that two compliant standard patterns occupy different lengths.
Keep RF and RTJ dimensions attached to their own drawing
Raised-face and ring-joint ends use different sealing arrangements. The relevant face-to-face basis and any dimensional provisions must come from the applicable standard and offered drawing. A generic allowance added to every flange is unreliable.
Confirm gasket type, facing details and mating-flange compatibility as well as length. Changing a facing type does not create an interchangeable joint merely by reproducing one overall dimension. The ZGV valve selection guide explains why connection requirements belong in the RFQ.
A hypothetical mismatch review
Suppose a survey records a 304 mm installed interface and the proposed valve drawing states 300 mm. These are invented example dimensions, not entries from ASME B16.10. Before deciding how to proceed, confirm that both measurements use the same datum and account correctly for the joint arrangement.
If the difference is real, obtain an approved piping and installation disposition. Do not assume that tightening bolts, adding an improvised spacer or forcing the piping closes the issue. The decision may require another valve pattern, a designed spool change or another engineered solution.
The example's value is the review sequence: same datum, confirmed dimensions, identified discrepancy and approved resolution. The magnitude alone is not an installation acceptance rule.
Check the assembly outside the pipe ends
A longer stem, different gearbox or new actuator can obstruct access even when the body length matches. Check the fully open height for rising-stem equipment, handle sweep, handwheel access and the maintenance withdrawal route. Include any required manual override.
Also compare the actual mass, centre of gravity and support implications of a changed assembly. These details are especially relevant near pumps, vessels and supported skids. A matching face-to-face dimension does not approve additional nozzle loads.
Close the drawing review before manufacture
Ask the supplier to return the general-arrangement drawing with the required connection dimension, pattern, tolerance, ends, operator and maintenance clearances identified. Resolve deviations against the site survey and piping requirements before approving the build.
ZGV's ball valve 2511 and gate valve 2524 can identify starting families. Send the actual replacement interface and service schedule and request an available configuration with a reviewable drawing. That is a stronger replacement basis than “same size, same class.”
