Metal-seated two-piece side-entry ball valve · Class 150/300/600

Compare the separate Class 150, Class 300 and Class 600 dimension tables for ZGV 2519. Confirm the marked Class 150 NPS, material option and service conditions before requesting a quotation.

FamilyBall valve
Product ID2519

Structure & product views

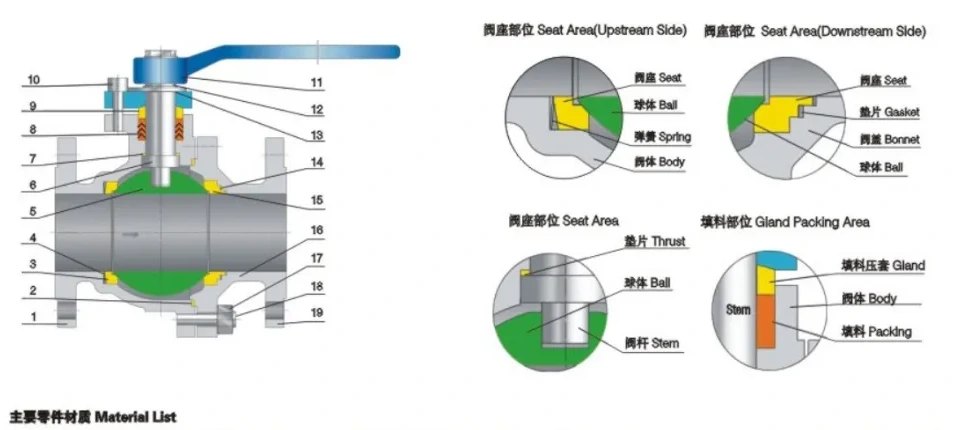

Structure and product views for Two piece metal hard sealed ball valve Class150/300/600

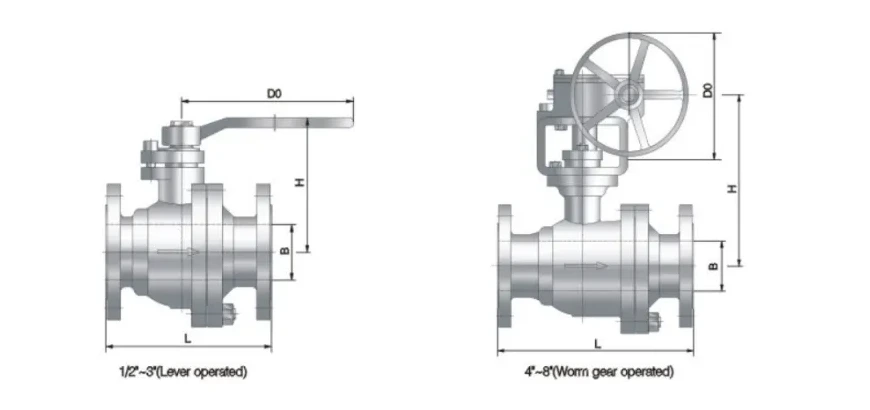

Structure and product views for Two piece metal hard sealed ball valve Class150/300/600

Technical data tables.

Dimensions & weights

Class 150 · Dimensions

NPS (in)D (mm)L (mm)H (mm)D₀ (mm)Weight (kg)
1/212.7108541402.1
3/419117591403
125.4127641604.1
1-1/238165901606.5
2511781022609
--6419011226011.2
37620312126015.3
410222916632028.6
615226720840053
820329224630081
Size confirmation

The NPS for the row with D = 64 mm is unclear in the catalogue. It is shown as —; confirm before ordering.

Dimensions & weights

Class 300 · Dimensions

NPS (in)D (mm)L (mm)H (mm)D₀ (mm)Weight (kg)
1/212.7140541402.8
3/419152591403.6
125.4165641604.9
1-1/2381909016010.4
25121610226010
2-1/26424111226016.1
37628212126023
410230516632039.5
615240320830082
8203419246300124

Dimensions & weights

Class 600 · Dimensions

NPS (in)D (mm)L (mm)H (mm)D₀ (mm)Weight (kg)
1/213165180658.5
3/4191901807011.5
1252162508516.3
1-1/23824130010519.5

Part materials

Major part materials

PartCarbon steel · −29°C to 250°CCarbon steel · 250°C to 425°CStainless steel · −29°C to 250°CStainless steel · 250°C to 550°C
BodyASTM A216 Gr.WCBASTM A216 Gr.WCBASTM A351 CF8MASTM A351 CF8M
BallASTM A182 F304/coatingASTM A182 F304/coatingASTM A182 F316/coatingASTM A182 F316/coating
StemASTM A182 F6aASTM A182 F6aASTM A182 F316ASTM A182 F316
SeatASTM A182 F316 / Stellite OverlayASTM A182 F316 / Stellite OverlayASTM A182 F316 / Stellite OverlayASTM A182 F316 / Stellite Overlay
GasketPEEKGraphite+304 S.S.PEEKGraphite+316 S.S.
Gland packingPEEKGraphite+304 S.S.PEEKGraphite+316 S.S.
Stem bearingPEEKGraphite+304 S.S.PEEKGraphite+316 S.S.
Spring17–7PHInconel X-750316 Stainless SteelInconel X-750
BoltASTM A193 B7ASTM A193 B7ASTM A193 B8MASTM A193 B8M
NutASTM A194 2HASTM A194 2HASTM A194 8MASTM A194 8M
Seat seal gasketGraphite+304 S.S.Graphite+304 S.S.Graphite+316 S.S.Graphite+316 S.S.

Catalogue configuration

What distinguishes this product?

Metal-seated two-piece side-entry ball valve · Class 150/300/600. Compare this two-piece metal-seated design with the soft-seated floating models. Read the material columns separately for each catalogue temperature group; they are not a general service approval. Confirm the unlabelled Class 150 NPS before selecting that row, and provide the connection, operating conditions and quantity.
