Three piece fixed forged steel ball valve Class300/600

Name: Three piece fixed forged steel ball valve Class300/600
Brand: ZGV
SKU: 2517

FamilyBall Valves

Product ID2517

Sales supportSubmit RFQ

Back to Ball Valves ↗

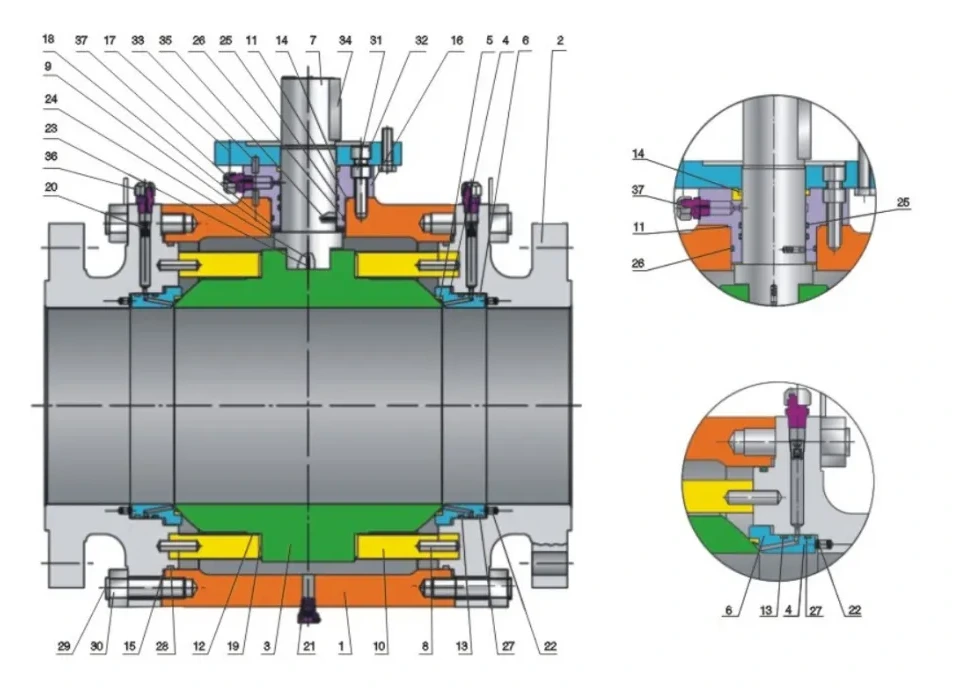

Structure and product views for Three piece fixed forged steel ball valve Class300/600

Dimensions & weights

Class 300 · Full port

Size (in)	D (mm)	L (mm)	H1 (mm)	H2 (mm)	Weight (kg)
2	51	216	105	100	31
3	76	282	160	130	58
4	102	305	205	170	110
6	152	403	245	190	180
8	203	502	280	230	280
10	254	568	326	280	410
12	305	648	350	300	760
14	337	762	380	330	1100
16	387	838	415	350	1600
18	438	914	440	400	1700
20	489	991	500	440	2300
22	540	1092	520	470	2900
24	591	1143	585	530	3500
26	635	1245	630	570	4900
28	686	1346	645	650	6000
30	736	1397	700	700	6800
32	781	1524	740	750	8000
34	832	1626	770	780	9100
36	876	1727	820	800	11000
40	978	1956	900	900	14000
42	1022	2083	960	950	17000
48	1168	2170	1100	1100	25000

Dimensions & weights

Class 300 · Reduced port

Size (in)	d (mm)	D (mm)	L (mm)	H1 (mm)	H2 (mm)	Weight (kg)
3×2×3	51	76	283	105	100	34
4×3×4	76	102	305	160	130	70
6×4×6	102	152	403	205	170	120
8×6×8	152	203	502	245	190	220
10×8×10	203	254	568	280	230	320
12×10×12	254	305	648	326	280	600
14×10×14	254	337	762	320	280	660
14×12×14	305	337	762	350	300	850
16×12×16	305	387	838	350	300	1000
16×14×16	337	387	838	380	330	1200
18×16×18	387	438	914	415	350	1700
20×16×20	387	489	991	415	350	1700
22×18×22	438	489	991	440	400	1850
24×20×24	489	591	1143	500	440	2700
30×24×30	591	736	1397	585	530	4600
36×30×36	736	876	1727	700	700	8000

Dimensions & weights

Class 600 · Full port

Size (in)	D (mm)	L (mm)	H1 (mm)	H2 (mm)	Weight (kg)
2	51	292	105	100	35
3	76	356	160	130	66
4	102	432	205	170	118
6	152	559	245	190	270
8	203	660	280	230	500
10	254	787	326	280	780
12	305	838	350	300	1100
14	337	889	380	330	1100
16	387	991	415	350	1600
18	438	1092	440	400	2160
20	489	1194	500	440	2700
22	540	1296	520	470	3900
24	591	1397	585	530	5000
26	635	1448	630	570	5700
28	686	1549	645	650	7000
30	736	1651	700	700	9000
32	781	1778	740	750	9800
34	832	1930	770	780	--
36	876	2083	820	800	14000
40	978	2337	900	900	19000
42	1022	2437	960	950	22000
48	1168	2540	1100	1100	26000

Dimensions & weights

Class 600 · Reduced port

Size (in)	d (mm)	D (mm)	L (mm)	H1 (mm)	H2 (mm)	Weight (kg)
3×2×3	51	76	356	105	100	42
4×3×4	76	102	432	160	130	90
6×4×6	102	152	559	205	170	160
8×6×8	152	203	660	245	190	300
10×8×10	203	254	787	280	230	560
12×10×12	254	305	838	326	280	820
14×10×14	254	337	889	320	280	920
14×12×14	305	337	889	350	300	1200
16×12×16	305	387	991	350	300	1400
16×14×16	337	387	991	380	330	1400
18×16×18	387	438	1092	415	350	1700
20×16×20	387	489	1194	415	350	2100
22×18×22	438	489	1194	440	400	2400
24×20×24	489	591	1397	500	440	3300
30×24×30	591	736	1651	585	530	5900
36×30×36	736	876	2083	700	700	11000

Part materials

Major part materials

No.	Part	Standard	Stainless steel	Sour service	Low-temperature service
1	Body	ASTM A105	ASTM A182 F316	ASTM A105	ASTM A350 LF2
2	Closure	ASTM A105	ASTM A182 F316	ASTM A105	ASTM A350 LF2
3	Ball	ASTM A105/ENP	ASTM A182 F316	ASTM A105/ENP	A350 LF2/ENP
4	Seat assembly	Assembled	Assembled	Assembled	Assembled
5	Seat insert	25% Glass-filled PTFE	25% Glass-filled PTFE	25% Glass-filled PTFE	25% Glass-filled PTFE
6	Seat ring	ASTM A105/ENP	ASTM A182 F316	ASTM A105/ENP	A350 LF2/ENP
7	Stem	ASTM A182 F6a	ASTM A182 F316	ASTM A182 F316	ASTM A182 F316
8	Trunnion alignment pin	ASTM A182 F316	ASTM A182 F316	ASTM A182 F316	ASTM A182 F316
9	Shim	ASTM A182 F316	ASTM A182 F316	ASTM A182 F316	ASTM A182 F316
10	Trunnion support	ASTM A105/ENP	ASTM A182 F316	ASTM A105/ENP	A350 LF2/ENP
11	Gasket	316 S.S.+Graphite	316 S.S.+Graphite	316 S.S.+Graphite	316 S.S.+Graphite
12	Gasket	316 S.S.+Graphite	316 S.S.+Graphite	316 S.S.+Graphite	316 S.S.+Graphite
13	Gasket	316 S.S.+Graphite	316 S.S.+Graphite	316 S.S.+Graphite	316 S.S.+Graphite
14	Spacer	PTFE	PTFE	PTFE	PTFE
15	Fire-safe gasket	316 S.S.+Graphite	316 S.S.+Graphite	316 S.S.+Graphite	316 S.S.+Graphite
16	Gland cap	ASTM A105	ASTM A182 F316	ASTM A105	ASTM A350 LF2
17	Top flange	ASTM A105	ASTM A182 F316	ASTM A105	ASTM A350 LF2
18	Thrust washer	316 S.S.+PTFE+MoS2	316 S.S.+PTFE+MoS2	316 S.S.+PTFE+MoS2	316 S.S.+PTFE+MoS2
19	Bearing	316 S.S.+PTFE+MoS2	316 S.S.+PTFE+MoS2	316 S.S.+PTFE+MoS2	316 S.S.+PTFE+MoS2
20	Vent valve	Assembly	Assembly	Assembly	Assembly
21	Drain	S.S.	S.S.	S.S.	S.S.
22	Seat spring	Inconel X-750	Inconel X-750	Inconel X-750	Inconel X-750
23	Grounding spring	S.S.	S.S.	S.S.	S.S.
24	Grounding plunger	ASTM A182 F316	ASTM A182 F316	ASTM A182 F316	ASTM A182 F316
25	O-ring	Viton	Viton	Viton	Viton
26	O-ring	Viton	Viton	Viton	Viton
27	O-ring	Viton	Viton	Viton	Viton
28	O-ring	Viton	Viton	Viton	Viton
29	Body stud	ASTM A193 B7	ASTM A193 B8	ASTM A193 B7M	ASTM A320 L7M
30	Body nut	ASTM A194 2H	ASTM A194 8	ASTM A194 2HM	ASTM A194 7M
31	Screw	C.S.	S.S.	C.S.	ASTM A320 L7M
32	Screw	C.S.	S.S.	C.S.	ASTM A320 L7M
33	Gland pin	C.S.	S.S.	C.S.	Carbon steel
34	Key	C.S.	S.S.	C.S.	ASTM A182 F304
35	Spring pin	C.S.	S.S.	C.S.	C.S.
36	Seat injection	Assembly	Assembly	Assembly	Assembly
37	Stem injection	Assembly	Assembly	Assembly	Assembly
