Gate Valves / Product 2527

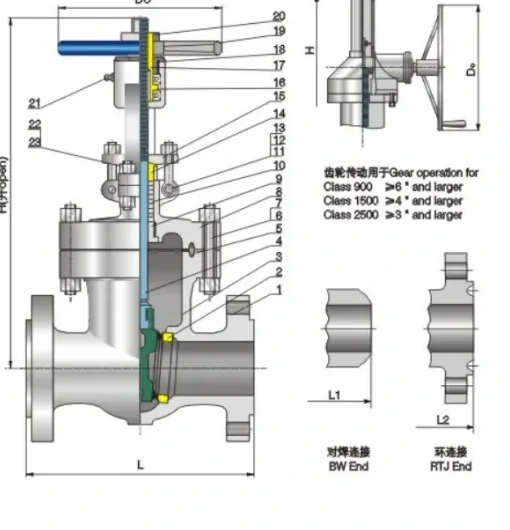

Bolted valve cover, exposed stem, elastic gate Class900/1500/2500

Name: Bolted valve cover, exposed stem, elastic gate Class900/1500/2500
Brand: ZGV
SKU: 2527

FamilyGate Valves

Product ID2527

Sales supportSubmit RFQ

Dimensions & weights

Size (in)	L-L1 (mm)	L2 RTJ (mm)	H open (mm)	D₀ (mm)	Weight RF (kg)	Weight BW (kg)
2	368	371	547	300	90	82
2-1/2	419	422	700	355	110	93
3	381	384	715	400	123	108
4	457	460	729	450	148	122
6	610	613	1041	560	420	359
8	737	740	1260	610	650	566
10	838	841	1590	610	1160	980
12	965	968	1795	610	1700	1450

Dimensions & weights

Size (in)	L-L1 (mm)	L2 RTJ (mm)	H open (mm)	D₀ (mm)	Weight RF (kg)	Weight BW (kg)
2	368	371	574	350	117	93
2-1/2	419	422	700	400	175	144
3	470	473	806	450	240	185
4	546	549	887	560	337	285
6	705	711	1079	610	680	584
8	832	842	1370	610	1228	978
10	991	1001	1520	760	2278	1990
12	1130	1146	1651	760	3260	2850

Dimensions & weights

Size (in)	L-L1 (mm)	L2 RTJ (mm)	H open (mm)	D₀ (mm)	Weight RF (kg)	Weight BW (kg)
2	451	454	700	350	132	99
2-1/2	508	514	750	450	206	155
3	578	584	753	560	256	192
4	673	683	1079	720	498	390
6	914	927	1254	460	1550	1230
8	1022	1038	1374	460	2395	1980
10	1270	1292	1685	610	4460	3700
12	--	--	--	--	--	--

Part materials
