Triple eccentric metal seated butterfly valve Class 150

ZGV 2567 is the Class 150 triple-eccentric (triple-offset) butterfly valve catalogue reference. Check the connection and seat construction; see 2568 separately for Class 300.

FamilyButterfly valve
Product ID2567

Structure & product views

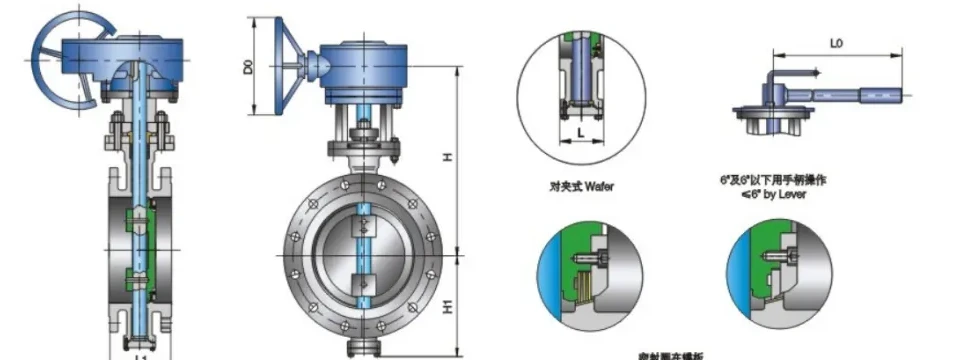

Structure and product views for Triple eccentric metal hard seal wafer or flange connection butterfly valve Class150

Design, materials and dimensions.

ClassClass 150
DesignTriple eccentric
SealingMetal-to-metal seat
ConnectionWafer or flanged ends

Design and selection notes

Actuation, ends & standards

Actuation ≤ 6"Lever operation
Face-to-faceAPI 609; MSS SP-68
Flanged endASME B16.5 & ASME B16.47
Other endsState it in the order

Dimensions & weights

Units and blank cells are shown with the table.

Size (in)L (mm)L1 (mm)H1 (mm)H (mm)D0 (mm)L0 (mm)Weight (Kg) · WaferWeight (Kg) · LugWeight (Kg) · Flange (Short Pattern)
243108110135--150101120
348114125155--180111329
454127147162--200131633
657140166240--300262874
864152215375180--364386
1071165238396180--5364142
1281178283446180--7486167
1492190302472315--110127218
16102216338555350--138159275
18114222381605400--180211315
20127229408638480--196225395
24154267495738480--400462580
28165292561976480--560655657
301903185901016610--685812717
321903186501160610--726868880
362033307001205480--92010561042
402164107501294480--128314701760
422294107801350480--148817231820
482544708921523480--164518952660

Technical data tables.

Part materials

Metal-seated · Part materials

PartMaterial
BodyASTM A216 Gr.WCB
Seal Ring304 S.S. + Graphite
PlateASTM A216 Gr.WCB
Seal Surface304 S.S.
StemASTM A182 F304
BushingASTM A276 410
Thrust Washer304 S.S. + Graphite
PackingFlexible Graphite

Catalogue configuration

What distinguishes this product?

Triple eccentric metal seated butterfly valve Class 150. Use the Class 150 triple-eccentric tables for this metal-seated model. The catalogue example combines a WCB body, 304 stainless-steel sealing surface and 304 stainless-steel/graphite seal ring. Select the wafer or flanged connection reference and provide NPS, actuation, operating conditions and quantity.
