Ferrule soft seal plug valve

Name: Ferrule soft seal plug valve
Brand: ZGV
SKU: 2570

FamilyPlug Valves

Product ID2570

Sales supportSubmit RFQ

Dimensions & weights

Item	Standard or requirement
Structural formation	BC
Driving manner	Wrench wheel, worm & worm gear, pneumatic, electric-actuated
Design standard	API 599; API 6D
Face to face	ASME B16.10
Flange ends	ASME B16.5
Test & inspection	API 598; API 6D

Dimensions & weights

Nominal pressure (lb)	Shell test (MPa)	Sealing test (MPa)	Suitable temperature (°C)	Suitable medium
150	3.0	2.2	≤180°C	Water, oil & gas
300	7.5	5.5	≤180°C	Water, oil & gas
600	15.0	11.0	≤180°C	Water, oil & gas
900	22.5	16.5	≤180°C	Water, oil & gas

Part materials

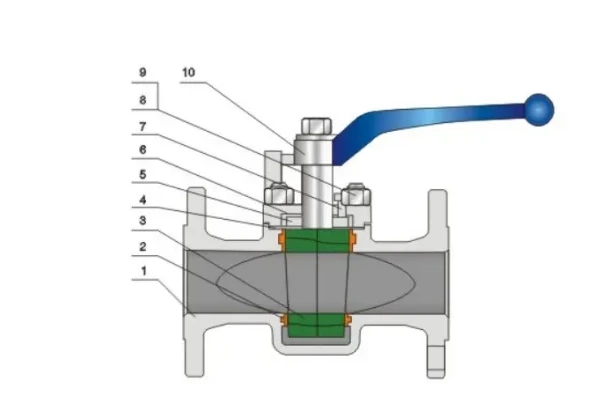

No.	Part	Material
1	Body	ASTM A216 WCB; ASTM A351-CF8, CF8M, CF3, CF3M
2	Sleeve	PTFE
3	Plug	ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
4	Gasket	Flexible graphite+stainless steel; PTFE
5	Adjusting gasket	ASTM A182-Gr.F6a; ASTM A182-F22; ASTM A182-F304, F316, F321, F304L, F316
6	Cover	ASTM A216-WCB; ASTM A351-CF8, CF8M, CF3, CF3M
7	Adjusting bolt	ASTM A193-B7, A193-B8, A193-B8M
8	Nut	ASTM A194-2H, A194-8, A194-8M
9	Bolt	ASTM A193-B7, A193-B8, A193-B8M
10	Wrench	ASTM A216-WCB

Dimensions & weights

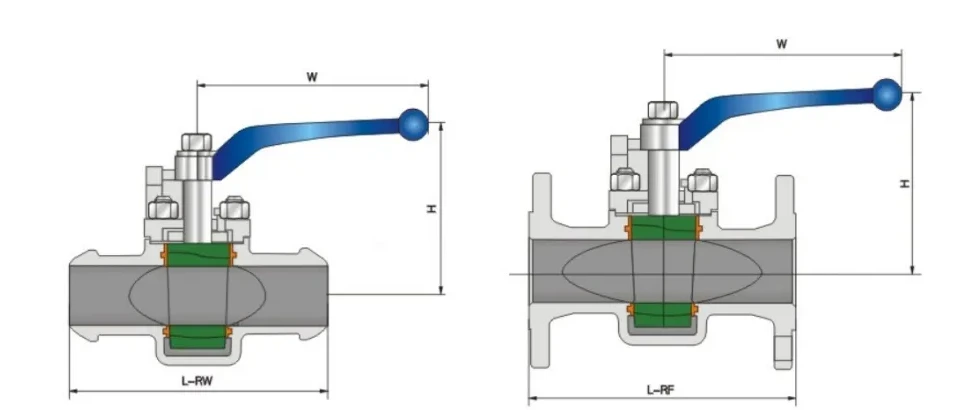

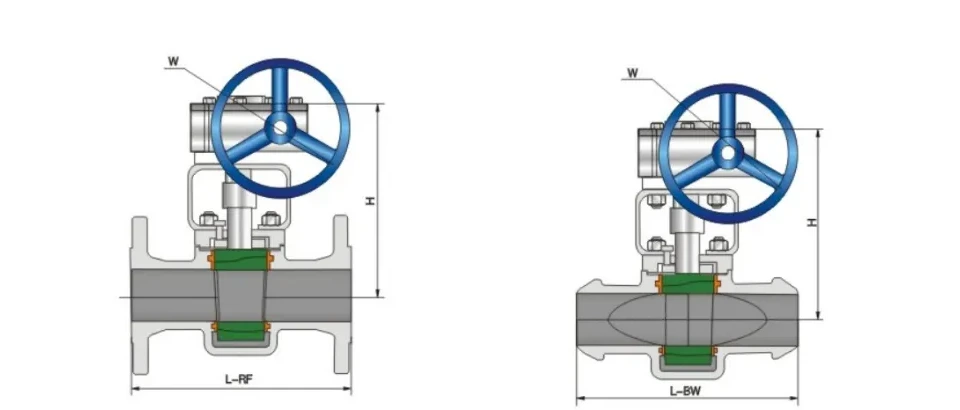

Class	Size (in)	DN (mm)	L-RF / L-RF+BW (mm)	L-BW (mm)	H (mm)	W (mm)	Weight (kg)
150	1/2	15	108	152	110	175	8.5
150	3/4	20	117	178	115	175	9.5
150	1	25	127	203	115	175	10.5
150	1-1/4	32	140	216	135	220	12
150	1-1/2	40	165	229	140	280	14
150	2	50	178	267	150	305	18
150	2-1/2	65	190	305	165	350	22
150	3	80	203	330	180	405	26
150	4	100	229	356	380	300	40
150	5	125	254	381	460	300	60
150	6	150	267	394	520	320	70
150	8	200	292	457	580	320	130
150	10	250	330	559	620	350	219
150	12	300	356	635	680	380	381
150	14	350	381	686	760	450	570
300	1/2	15	140	152	110	175	9.5
300	3/4	20	152	178	115	175	10.5
300	1	25	165	203	115	175	12
300	1-1/4	32	178	216	135	220	14
300	1-1/2	40	190	229	140	280	16
300	2	50	216	267	150	305	20
300	2-1/2	65	241	305	165	350	24
300	3	80	282	330	180	405	29
300	4	100	305	356	380	300	53
300	5	125	381	381	460	300	75
300	6	150	403	457	520	320	85
300	8	200	419	521	580	320	185
300	10	250	457	559	620	350	230
300	12	300	502	635	680	380	390
300	14	350	762	762	760	450	550
600	1/2	15	165	--	110	175	11
600	3/4	20	190	--	115	175	13
600	1	25	216	--	115	175	17
600	1-1/4	32	229	--	135	220	20
600	1-1/2	40	241	--	140	280	23
600	2	50	292	--	150	305	31
600	2-1/2	65	330	--	165	350	31
600	3	80	356	--	180	405	36
600	4	100	432	--	380	300	72
600	5	125	508	--	460	300	98
600	6	150	559	--	520	320	141
600	8	200	660	--	580	320	245
600	10	250	787	--	620	350	330
600	12	300	838	--	680	380	515
600	14	350	899	--	760	450	710
900	1/2	15	229	--	110	175	13
900	3/4	20	229	--	115	175	16
900	1	25	254	--	115	175	21
900	1-1/4	32	279	--	135	220	24
900	1-1/2	40	305	--	140	280	28
900	2	50	368	--	150	305	32
900	2-1/2	65	419	--	165	350	40
900	3	80	381	--	180	405	47
900	4	100	457	--	380	300	91
900	5	125	559	--	460	300	117
900	6	150	610	--	520	320	165
900	8	200	737	--	580	320	285
900	10	250	838	--	620	350	420
900	12	300	965	--	680	380	610
900	14	350	1029	--	760	500	860
