Flange type sleeve plug valve

Name: Flange type sleeve plug valve
Brand: ZGV
SKU: 2572

FamilyPlug Valves

Product ID2572

Sales supportSubmit RFQ

Part materials

No.	Part	Material
1	Body	ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
2	Plug	ASTM A182-Gr.F6a; ASTM A182-F22; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
3	Gasket	Flexible graphite+stainless steel; PTFE
4	Cover	ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
5	Bolt	ASTM A193-B7, A193-B8, A193-B8M
6	Nut	ASTM A194-2H, A194-8, A194-8M
7	Packing	Flexible graphite; PTFE
8	Gland	ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
9	Wrench	ASTM A216-WCB; ASTM A351-CF8, CF8M, CF3, CF3M
10	Yoke nut	Aluminium alloy ZQA19-4
11	Handwheel	ASTM A536 Gr.60–40–18; ASTM A216-WCB

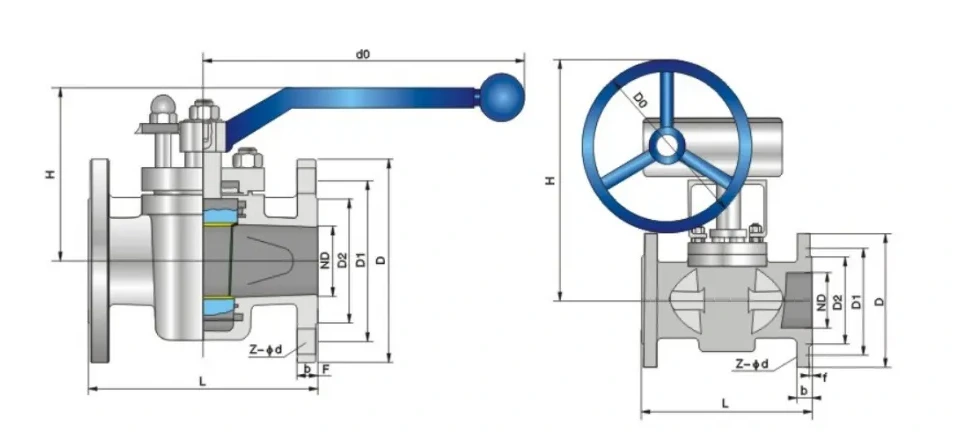

Dimensions & weights

Class	Nominal size (in)	d (mm)	d1 (mm)	d2 (mm)	L (mm)	b (mm)	H (mm)	D₀ (mm)
150	1/2	13	21.8±0.11	38	108	10	110	160
150	3/4	19	27.2±0.1	43	117	13	115	160
150	1	25	33.9±0.1	49	127	13	115	190
150	1-1/4	32	42.7±0.1	56	140	13	135	190
150	1-1/2	38	48.8±0.1	65	165	13	140	240
150	2	51	64.2±0.1	78	178	16	150	305
150	2-1/2	64	74±0.5	90	190	16	165	305
150	3	78	90±0.15	105	203	16	180	450
150	4	102	115.6±0.15	126	229	19	380	500
300	1/2	13	21.8±0.1	38	140	10	110	175
300	3/4	19	27.2±0.1	43	152	13	115	175
300	1	25	33.9±0.1	49	165	13	115	175
300	1-1/4	32	42.7±0.1	56	178	13	135	220
300	1-1/2	38	48.8±0.1	65	190	13	140	280
300	2	51	61.2±0.1	78	216	16	150	305
300	2-1/2	64	74±0.2	90	241	16	165	350
300	3	78	90±0.15	105	283	16	180	450
300	4	102	115.6±0.15	126	305	19	380	300
600	1/2	13	21.5±0.1	38	165	10	110	175
600	3/4	19	27.2±0.1	46	190	13	115	175
600	1	25	33.9±0.1	52	216	13	115	220
600	1-1/4	32	42.7±0.1	60	229	13	135	280
600	1-1/2	38	48.8±0.1	70	241	13	140	305
600	2	51	61.2±0.1	82	292	16	150	350
600	2-1/2	64	74±0.2	98	330	16	165	450
600	3	76	90±0.15	115	356	16	180	500
600	4	102	115.6±0.15	136	432	19	380	--
