Plug Valves / Product 2574

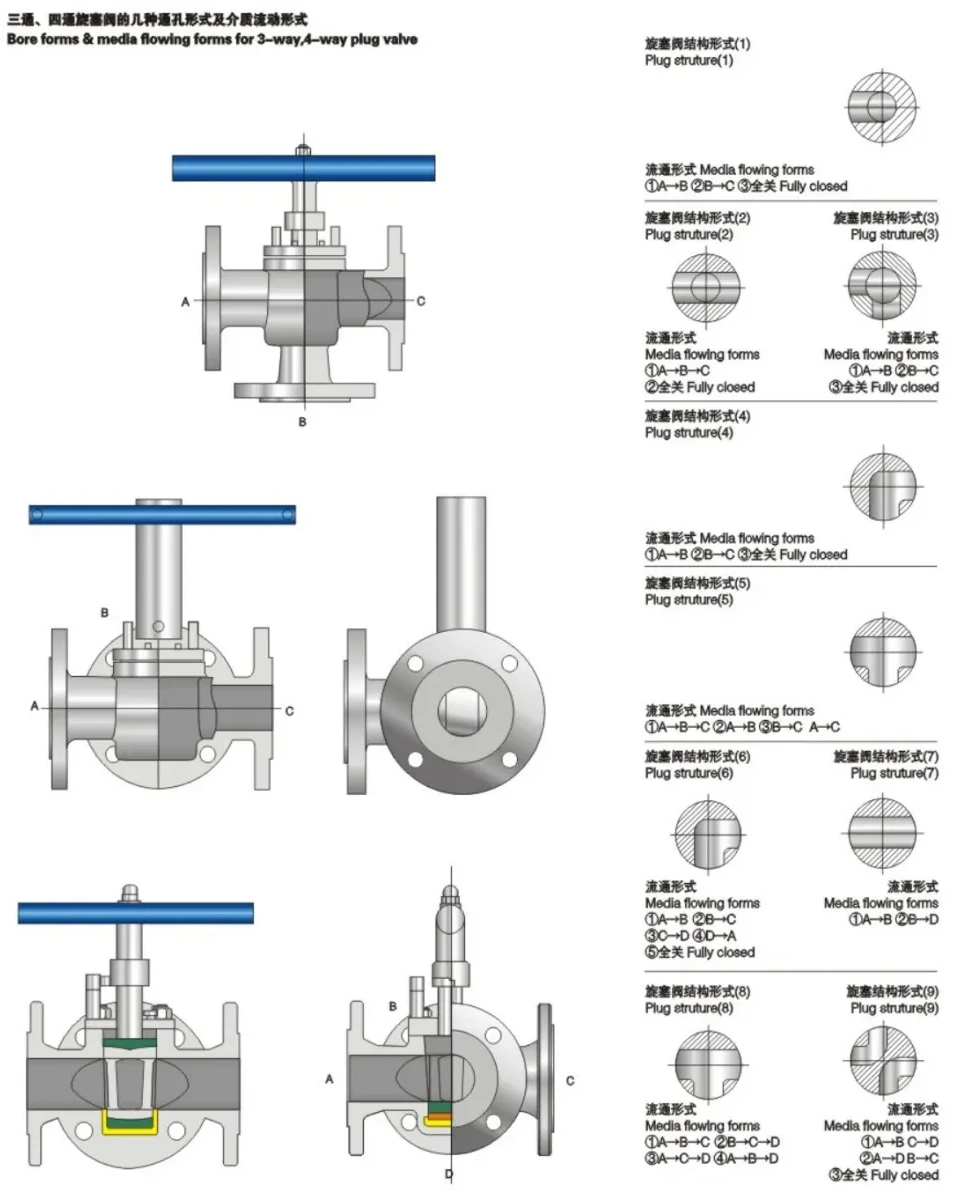

Structure & product views
Product parameters
Dimensions & weights
| Item | Standard or requirement |
|---|---|
| Structural formation | BB–BC |
| Driving manner | Wrench wheel, worm & worm gear, pneumatic, electric-actuated |
| Design standard | API 599; API 6D |
| Face to face | ASME B16.10; GB12221; DIN3202 |
| Flange ends | ASME B16.5; JB79; GB9113; DIN2543–2545 |
| Test & inspection | API 598; API 6D; GB13927; DIN3230 |
Dimensions & weights
| Nominal pressure (lb) | Shell test (MPa) | Sealing test (MPa) |
|---|---|---|
| 150 | 3.0 | 2.2 |
| 300 | 7.5 | 5.5 |
| 600 | 15.0 | 11.0 |
| 900 | 22.5 | 16.5 |
Dimensions & weights
| Nominal pressure (MPa) | Shell test (MPa) | Sealing test (MPa) |
|---|---|---|
| 1.6 | 2.4 | 1.76 |
| 2.5 | 3.75 | 2.75 |
| 4.0 | 6.0 | 4.4 |
| 6.4 | 9.6 | 7.04 |
| 10.0 | 15.0 | 11.0 |
| 16.0 | 24.0 | 17.6 |
Dimensions & weights
| Item | Standard or requirement |
|---|---|
| Connecting flange size | Can be designed and manufactured according to customer requirements. |
