Lift type hard seal plug valve

Name: Lift type hard seal plug valve
Brand: ZGV
SKU: 2573

FamilyPlug Valves

Product ID2573

Sales supportSubmit RFQ

Dimensions & weights

Item	Standard or requirement
Structural formation	BB–BC
Driving manner	Wrench wheel, worm & worm gear, pneumatic, electric-actuated
Design standard	API 599; API 6D
Face to face	ASME B16.10; GB12221; DIN3202
Flange ends	ASME B16.5; JB79; GB9113; DIN2543–2545
Test & inspection	API 598; API 6D; GB13927; DIN3230

Dimensions & weights

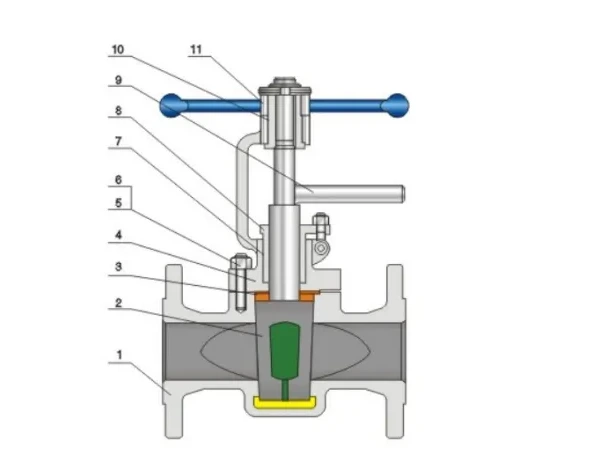

Part materials

No.	Part	Material
1	Body	ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
2	Plug	ASTM A182-Gr.F6a; ASTM A182-F22; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
3	Gasket	Flexible graphite+stainless steel; PTFE
4	Cover	ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
5	Bolt	ASTM A193-B7, A193-B8, A193-B8M
6	Nut	ASTM A194-2H, A194-8, A194-8M
7	Packing	Flexible graphite; PTFE
8	Gland	ASTM A216-WCB; ASTM A217-WC1, WC6, WC9, C5; ASTM A351-CF8, CF8M, CF3, CF3M
9	Wrench	ASTM A216-WCB; ASTM A351-CF8, CF8M, CF3, CF3M
10	Yoke nut	Aluminium alloy ZQA19-4
11	Handwheel	ASTM A536 Gr.60–40–18; ASTM A216-WCB

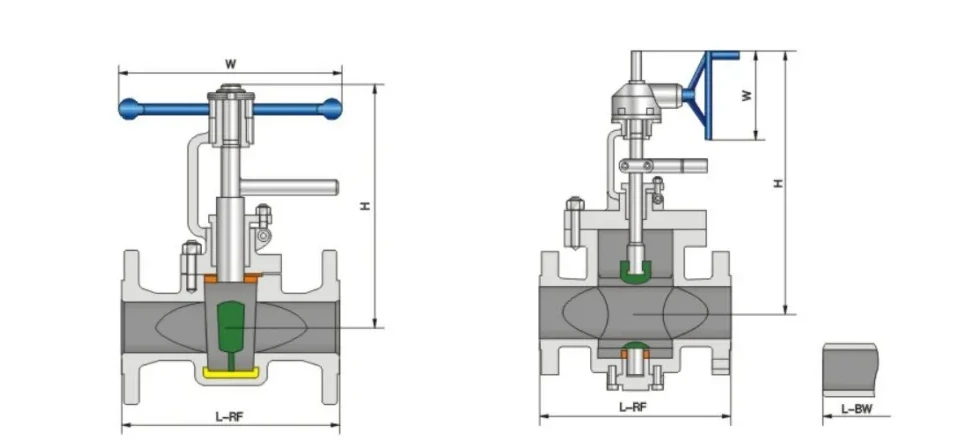

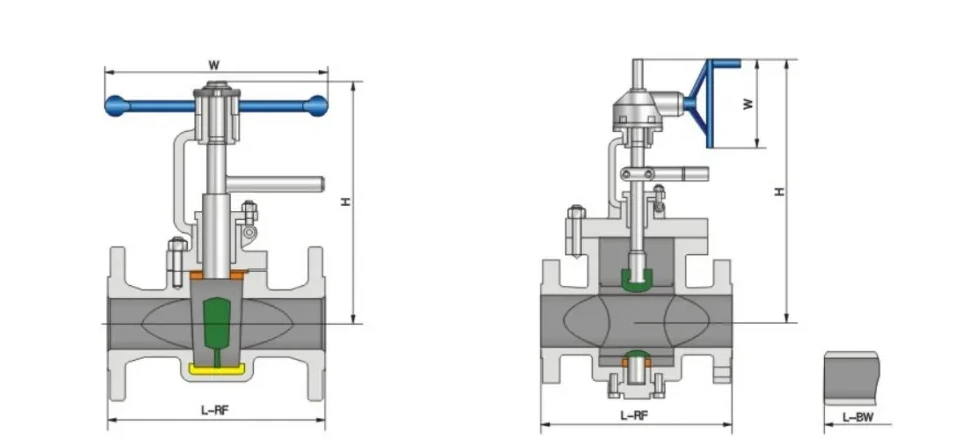

Dimensions & weights

Class	Size (in)	DN (mm)	L-RF / L-RF+BW (mm)	L-BW (mm)	H (mm)	W (mm)	Weight (kg)
150	1/2	15	108	152	190	120	9
150	3/4	20	117	178	195	140	10
150	1	25	127	203	225	140	11
150	1-1/4	32	140	216	260	180	17
150	1-1/2	40	165	229	280	200	19
150	2	50	178	267	310	220	23
150	2-1/2	65	190	305	340	260	25
150	3	80	203	330	395	280	32
150	4	100	229	356	435	300	55
150	5	125	254	381	470	340	82
150	6	150	267	394	535	400	98
150	8	200	292	457	590	450	130
150	10	250	330	530	630	450	178
150	12	300	356	610	680	500	250
150	14	350	381	686	720	500	380
300	1/2	15	140	152	190	120	10
300	3/4	20	152	178	195	140	12
300	1	25	165	203	225	140	14
300	1-1/4	32	178	216	260	180	19
300	1-1/2	40	190	229	280	200	21
300	2	50	216	267	310	220	28
300	2-1/2	65	241	305	340	260	34
300	3	80	282	330	395	280	39
300	4	100	305	356	435	300	75
300	5	125	381	381	470	340	95
300	6	150	403	457	535	400	135
300	8	200	419	521	590	450	200
300	10	250	457	559	630	450	255
300	12	300	502	635	680	500	415
300	14	350	762	762	720	500	650
600	1/2	15	165	--	190	120	13
600	3/4	20	190	--	195	140	14
600	1	25	216	--	225	140	19
600	1-1/4	32	229	--	260	180	23
600	1-1/2	40	241	--	280	200	25
600	2	50	292	--	310	220	32
600	2-1/2	65	330	--	340	260	40
600	3	80	356	--	395	280	55
600	4	100	432	--	435	300	105
600	5	125	508	--	470	340	139
600	6	150	559	--	535	400	300
600	8	200	660	--	590	450	440
600	10	250	787	--	630	450	730
600	12	300	838	--	680	500	1150
600	14	350	889	--	720	500	1570
900	1/2	15	229	--	190	120	16
900	3/4	20	229	--	195	140	17
900	1	25	254	--	225	140	26
900	1-1/4	32	279	--	260	180	30
900	1-1/2	40	305	--	280	200	33
900	2	50	368	--	310	220	39
900	2-1/2	65	419	--	340	260	50
900	3	80	381	--	395	280	70
900	4	100	457	--	435	300	137
900	5	125	559	--	470	340	181
900	6	150	610	--	535	400	397
900	8	200	737	--	590	450	590
900	10	250	838	--	630	450	860
900	12	300	965	--	680	500	1470
900	14	350	1029	--	720	500	1880
