Butterfly Valves / Product 2568

Triple-eccentric, metal-to-metal-seat, wafer or flanged butterfly valve Class 300

Name: Triple-eccentric, metal-to-metal-seat, wafer or flanged butterfly valve Class 300
Brand: ZGV
SKU: 2568

FamilyButterfly Valves

Product ID2568

Sales supportSubmit RFQ

ClassClass 300

DesignTriple eccentric

SealingMetal-to-metal seat

ConnectionWafer or flanged ends

Design and selection notes

Actuation ≤ 6"Lever operation

Face-to-faceAPI 609; MSS SP-68

Flanged endASME B16.5 & ASME B16.47

Other endsState it in the order

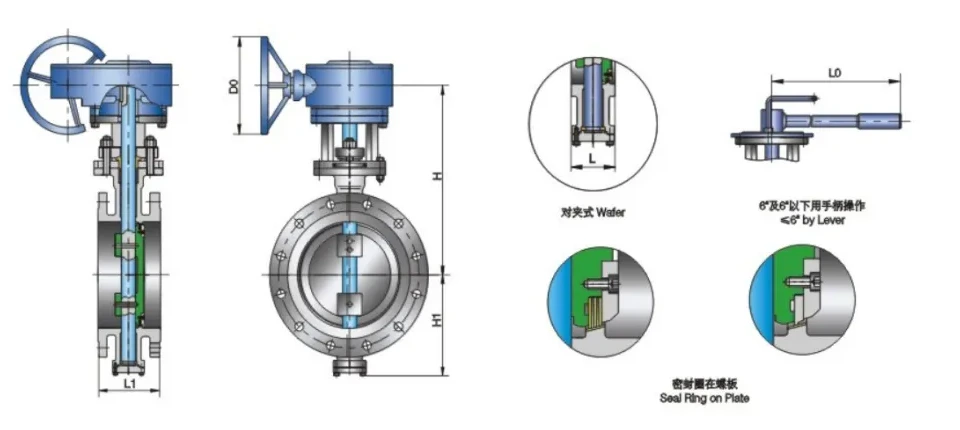

Dimensions & weights

Units and blank cells are shown with the table.

Size (in)	L (mm)	L1 (mm)	H1 (mm)	H (mm)	D0 (mm)	L0 (mm)	Weight (Kg) · Wafer	Weight (Kg) · Lug	Weight (Kg) · Flange (Short Pattern)
3	48	180	125	155	--	180	13	15	29
4	54	190	147	162	--	200	18	21	35
6	59	210	166	240	--	300	29	33	81
8	73	230	215	375	180	--	38	42	94
10	83	250	238	396	180	--	58	63	156
12	92	270	283	446	180	--	91	86	183
14	117	290	302	472	315	--	121	131	239
16	133	310	338	555	350	--	153	165	302
18	149	330	381	605	400	--	197	211	346
20	159	350	408	638	480	--	215	238	434
24	181	390	495	738	480	--	443	465	638

Part materials
