Product ID 2514 Two piece Trunnion-mounted Ball Valve Class150/300

Ball Valves / Product 2514

Two piece Trunnion-mounted Ball Valve Class150/300

FamilyBall Valves
Product ID2514
Sales supportSubmit RFQ
Back to Ball Valves ↗

Structure & product views

Product structure and views.

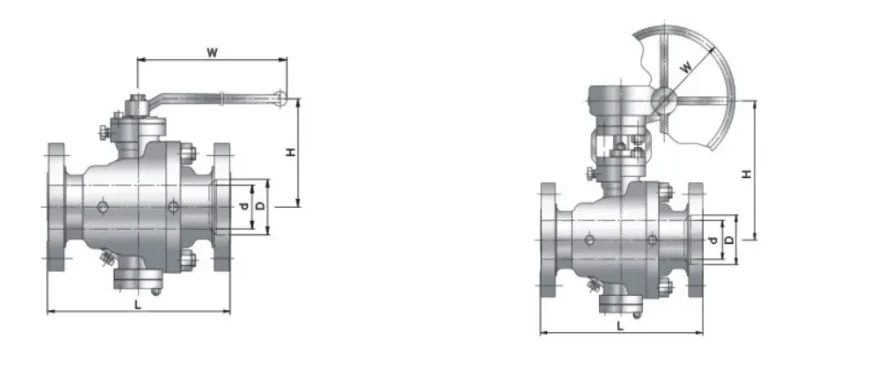

Structure and product views for Two piece fixed ball valve Class150/300

Product parameters

Technical data tables.

Dimensions & weights

Class 150 · Full bore

Size (in)D (mm)L (mm)H (mm)W (mm)Weight (kg)
25117816523017
37620319340033
410222923146050
6152394390100093
8203457495*500166
10254533505*500273
12305610560*500475
14337686600*500570
16387762750*500778
18438864845*500935
20489914910*5001190
22540--1000*5001346
2459110671065*5001579

Dimensions & weights

Class 150 · Reduced bore

Size (in)d (mm)D (mm)L (mm)H (mm)W (mm)Weight (kg)
3×2×3517620316523030
4×3×47610222919340047
6×4×610215239423140090
8×6×8152203457390460161
10×8×102032545334951000268
12×10×12254305610505*500467
14×12×14305337686560*500560
16×14×16337387762600*500766
18×16×18387438864750*500902
20×18×20438489914845*5001130
22×20×224895401016910*5001300
24×22×2454059110671000*5001520

Dimensions & weights

Class 300 · Full bore

Size (in)D (mm)L (mm)H (mm)W (mm)Weight (kg)
25121616523018
37628319340040
410230523175063
61524033901000150
82035024951500240
10254568505*500305
12305648560*500507
14337762600*500602
16387838750*5001000
18438914845*5001160
20489991910*5001320
2254010921000*5001540
2459111431065*5001874

Dimensions & weights

Class 300 · Reduced bore

Size (in)d (mm)D (mm)L (mm)H (mm)W (mm)Weight (kg)
3×2×3517628316523038
4×3×47610230519340060
6×4×6102152403231750147
8×6×81522035023901000234
10×8×102032545684951500295
12×10×12254305648505*500488
14×12×14305337762560*500570
16×14×16337387838600*500910
18×16×18387438914750*5001020
20×18×20438489991845*5001280
22×20×224895401092910*5001360
24×22×2454059111431000*5001670

Part materials

Major part materials

No.PartStandardStainless steelSour serviceLow-temperature service
1BodyASTM A216 WCBASTM A351 CF8MASTM A216 WCBASTM A352 LCB
2Body studASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
3Body nutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
4Body gasket316ss+Graphite316ss+Graphite316ss+Graphite316ss+Graphite
5Low coverCarbon steelS.S.Carbon steelCarbon steel
6SupportASTM A216 WCB/ENPASTM A216 WCB/ENPASTM A216 WCB/ENPASTM A216 WCB/ENP
7Thrust washer316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2
8StudASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
9NutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
10O-ringNBRNBRNBRNBR
11Bearing316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2
12Drain plugAssemblyAssemblyAssemblyAssembly
13Seat insert25% Glass-filled PTFE25% Glass-filled PTFE25% Glass-filled PTFE25% Glass-filled PTFE
14O-ringNBRNBRNBRNBR
15Seat springASTM A105/ENPASTM A182 F316ASTM A106/ENPASTM A350 LF2/ENP
16Seat springInconel X-750Inconel X-750Inconel X-750Inconel X-750
17BallASTM A105/ENPASTM A182 F316ASTM A105/ENPASTM A350 LF2/ENP
18StemASTM A182 F316ASTM A182 F316ASTM A182 F316ASTM A182 F316
19Seat injectionAssemblyAssemblyAssemblyAssembly
20Sealant fittingAssemblyAssemblyAssemblyAssembly
21O-ringNBRNBRNBRNBR
22O-ringNBRNBRNBRNBR
23Sealant fittingAssemblyAssemblyAssemblyAssembly
24Gasket316ss+Graphite316ss+Graphite316ss+Graphite316ss+Graphite
25PackingGraphiteGraphiteGraphiteGraphite
26StudASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
27NutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
28GlandASTM A182 F316ASTM A182 F316ASTM A182 F316ASTM A182 F316
29Gland flangeASTM A216 WCBASTM A351 CF8MASTM A216 WCBASTM A352 LCB
30StudASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
31NutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
32StudASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
33NutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
34WormAssemblyAssemblyAssemblyAssembly
35KeyCarbon steelS.S.Carbon steelASTM A182 F304
36YokeASTM A216 WCBASTM A351 CF8MASTM A216 WCBASTM A352 LCB
37BoltCarbon steelS.S.Carbon steelCarbon steel
38Bearing316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2
