Product ID 2515 Two piece Trunnion-mounted Ball Valve Class600/900

Ball Valves / Product 2515

Two piece Trunnion-mounted Ball Valve Class600/900

FamilyBall Valves
Product ID2515
Sales supportSubmit RFQ
Back to Ball Valves ↗

Structure & product views

Product structure and views.

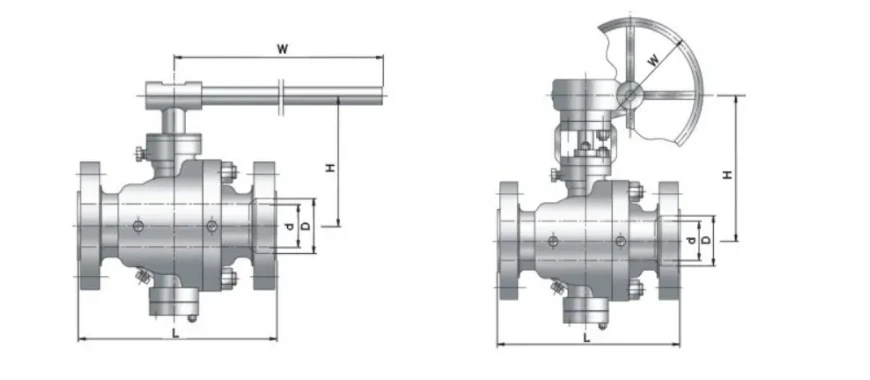

Structure and product views for Two piece fixed ball valve Class600/900

Product parameters

Technical data tables.

Dimensions & weights

Class 600 · Full bore

Size (in)D (mm)L (mm)H (mm)W (mm)Weight (kg)
25129217640027
37635624775050
4102432335100080
61525594201500220
8203660430*500350
10254787520*500600
12305838665*500820
14337889720*5001130
16387991780*5001550
184381092950*5002100
2048911941010*5002800
2459113971120*5003626

Dimensions & weights

Class 600 · Reduced bore

Size (in)d (mm)D (mm)L (mm)H (mm)W (mm)Weight (kg)
3×2×3517635617640041
4×3×47610243224775070
6×4×61021525593351000122
8×6×81522036604201500255
10×8×10203254787430*500440
12×10×12254305838520*500662
14×12×14305337889665*5001060
16×14×16337387991720*5001440
18×16×183874381092780*5001860
20×18×204384891194950*5002400
24×20×2448959113971010*5003240

Dimensions & weights

Class 900 · Full bore

Size (in)D (mm)L (mm)H (mm)W (mm)Weight (kg)
25136819246052
376381279100097
41024573551500138
6152610385*500288
8203737460*500448
10254838600*500748
12305965690*5001018
143241029785*5001398
163751130850*5001828
184261219915*5002328
204731321975*6102928
2457215491030*6104178

Dimensions & weights

Class 900 · Reduced bore

Size (in)d (mm)D (mm)L (mm)H (mm)W (mm)Weight (kg)
3×2×3517638119246083
4×3×4761024572791000103
6×4×61021526103551500201
8×6×8152203737385*500348
10×8×10203254838460*500598
12×10×12254305965600*500788
14×12×143053241029690*5001100
16×14×163243751130785*5001420
18×16×183754261219850*5001928
20×18×204264731321915*5002428
24×20×244735721549975*6103578

Part materials

Major part materials

No.PartStandardStainless steelSour serviceLow-temperature service
1BodyASTM A216 WCBASTM A351 CF8MASTM A216 WCBASTM A352 LCB
2Body studASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
3Body nutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
4Body gasket316ss+Graphite316ss+Graphite316ss+Graphite316ss+Graphite
5Low coverCarbon steelS.S.Carbon steelCarbon steel
6SupportASTM A216 WCB/ENPASTM A216 WCB/ENPASTM A216 WCB/ENPASTM A216 WCB/ENP
7Thrust washer316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2
8StudASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
9NutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
10O-ringNBRNBRNBRNBR
11Bearing316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2
12Drain plugAssemblyAssemblyAssemblyAssembly
13Seat insert25% Glass-filled PTFE25% Glass-filled PTFE25% Glass-filled PTFE25% Glass-filled PTFE
14O-ringNBRNBRNBRNBR
15Seat springASTM A105/ENPASTM A182 F316ASTM A106/ENPASTM A350 LF2/ENP
16Seat springInconel X-750Inconel X-750Inconel X-750Inconel X-750
17BallASTM A105/ENPASTM A182 F316ASTM A105/ENPASTM A350 LF2/ENP
18StemASTM A182 F316ASTM A182 F316ASTM A182 F316ASTM A182 F316
19Seat injectionAssemblyAssemblyAssemblyAssembly
20Sealant fittingAssemblyAssemblyAssemblyAssembly
21O-ringNBRNBRNBRNBR
22O-ringNBRNBRNBRNBR
23Sealant fittingAssemblyAssemblyAssemblyAssembly
24Gasket316ss+Graphite316ss+Graphite316ss+Graphite316ss+Graphite
25PackingGraphiteGraphiteGraphiteGraphite
26StudASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
27NutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
28GlandASTM A182 F316ASTM A182 F316ASTM A182 F316ASTM A182 F316
29Gland flangeASTM A216 WCBASTM A351 CF8MASTM A216 WCBASTM A352 LCB
30StudASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
31NutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
32StudASTM A193 B7ASTM A193 B8ASTM A193 B7MASTM A320 L7M
33NutASTM A194 2HASTM A194 8ASTM A194 2HMASTM A194 7M
34WormAssemblyAssemblyAssemblyAssembly
35KeyCarbon steelS.S.Carbon steelASTM A182 F304
36YokeASTM A216 WCBASTM A351 CF8MASTM A216 WCBASTM A352 LCB
37BoltCarbon steelS.S.Carbon steelCarbon steel
38Bearing316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2316+PTFE+MoS2
