Ball Valves / Product 2512

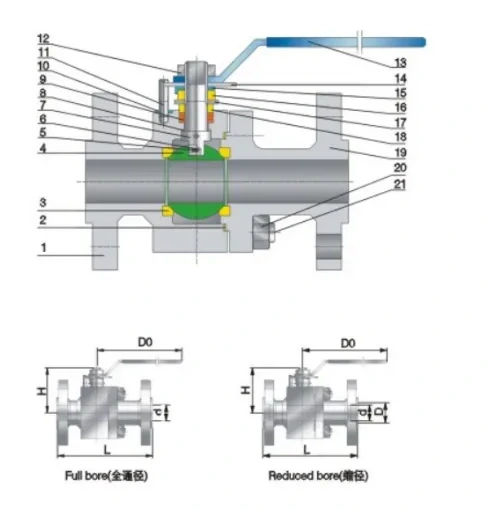

Two piece floating ball valve Class600/900

Name: Two piece floating ball valve Class600/900
Brand: ZGV
SKU: 2512

FamilyBall Valves

Product ID2512

Sales supportSubmit RFQ

Part materials

Dimensions & weights

NPS (in)	D (mm)	L (mm)	H (mm)	D₀ (mm)	Weight (kg)
1/2	13	165	98	140	3.0
3/4	19	190	103	140	4.8
1	25	216	122	170	6.5
1-1/2	38	241	135	260	12.0
2	51	292	151	300	15.0
3	76	356	177	450	28.0

Dimensions & weights

NPS (in)	d (mm)	D (mm)	L (mm)	H (mm)	D₀ (mm)	Weight (kg)
3/4×1/2	13	19	190	98	140	2.8
1×3/4	19	25	216	103	140	3.2
1-1/2×1	25	38	241	122	170	5.5
2×1-1/2	38	51	292	135	260	7.1
3×2	51	76	356	151	300	12.8
--	--	--	--	--	--	--

Dimensions & weights

NPS (in)	D (mm)	L (mm)	H (mm)	D₀ (mm)	Weight (kg)
1/2	13	216	115	160	4.2
3/4	19	229	122	230	9.6
1	25	254	125	230	13.8
1-1/2	38	305	157	400	21.8
2	51	368	178	400	39.0
3	76	381	208	500	58.0

Dimensions & weights

NPS (in)	d (mm)	D (mm)	L (mm)	H (mm)	D₀ (mm)	Weight (kg)
3/4×1/2	13	19	229	115	160	5.6
1×3/4	19	25	254	122	230	6.8
1-1/2×1	25	38	305	125	230	12.0
2×1-1/2	38	51	368	157	400	16.5
3×2	51	76	381	178	400	24.0
--	--	--	--	--	--	--

Request a Quote
